Discontinued

Apri KBSS-4D parking assistant

APRI | KBSS-4D

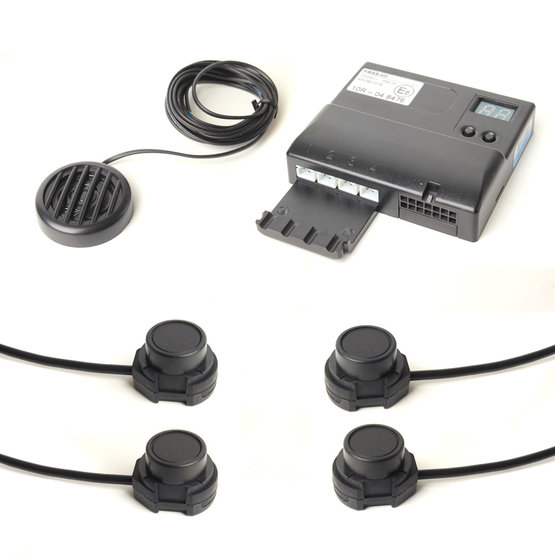

Acoustic parking assistant of the new generation from the European manufacturer, 4 sensors, option to choose as a front or rear assistant, for 12/24V, high resistance to interference, sensors can be fitted into a 16mm or 18mm hole, radio mute, wheel suppresion, individual sensor range adjustment, delayed activation, temporary deactivation, option for 2 or 3 sensors installation and others, are still preserved.



Discontinued

Acoustic parking assistant of the new generation from the European manufacturer, 4 sensors, option to choose as a front or rear assistant, for 12/24V, high resistance to interference, sensors can be fitted into a 16mm or 18mm holeradio mute, wheel suppresion, individual sensor range adjustmentdelayed activationtemporary deactivation, option for 2 or 3 sensors installation and others, are still preserved.

Features:

  • 4x ultrasonic sensors, ultrasonic frequency: 40KHz
  • detecting also very close obstacles
  • adjustable to move the detection (because of towing, spare wheel, offroad frames ...)
  • setting the range and sensitivity
  • waterproof design of sensors and sensor connectors to cabling
  • digital signal processing, Texas Instruments ASIC
  • high resistance to electromagnetic interference
  • buzzer with LED (flashing according to distance from obstacle)
  • possibility to fit the sensor into a 16mm or 18mm hole
  • option to assign a custom feature to the service display
  • many other features
  • overpaint: yes
  • 12/24V
  • working temperature: -30 °C to +80 °C

Parameters

Power Suply 12/24VDC
Sensors colour black matt
Manufacturer Apri
Display Without display
Sensor type Basic
Weight 0.48 kg
