AUTORELAY 12V Automatic relay for secondary battery charging

| AUTORELAY 12V

The relay is designed for controlled charging of an additional battery in a vehicle intended for dashcams or recording devices power supply. If a camera intended to record while car is parked, the AUTORELAY 12V charges the additional battery while driving, thus maintaining the main battery capacity for the start even after a longer parking period.

AUTORELAY 12V Automatic relay for secondary battery charging

Features

relay closes when voltage reaches 13.3 V
relay disconnects when voltage drops below 12.8 V
3-wire battery connection
overvoltage protection
LED indicator
for charging currents up to 140 A
without voltage drop
monitors voltage of both batteries
consumption in open state: 16 mA
consumption in closed state: 320 mA
battery connection using M6 contacts
Dimensions
- 67 mm
- 67 mm
- 53 mm

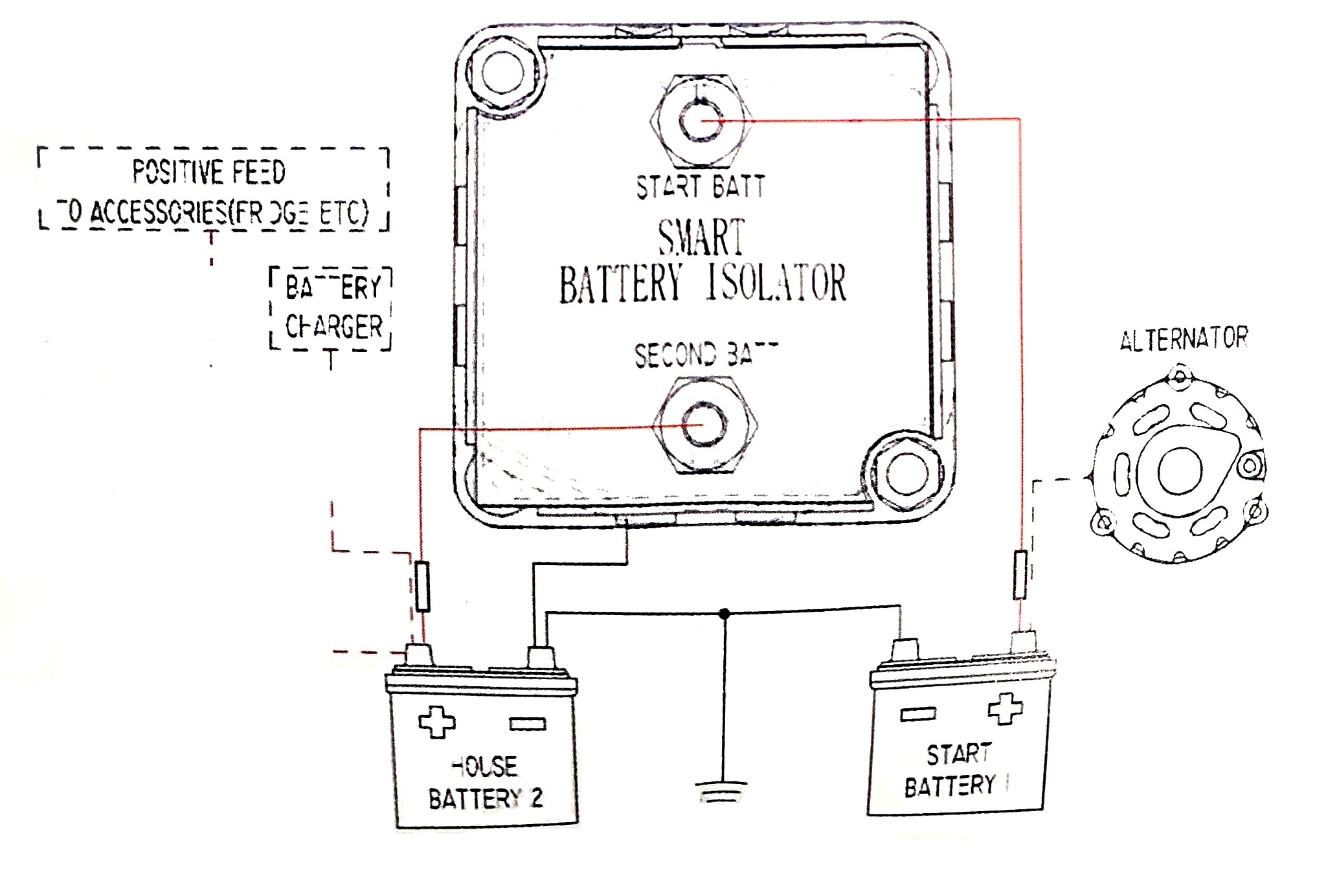

Connection

black wire - ground
contact M6 - starter battery + 12V
contact M6 - additional battery +12V

Parameters

Weight	0.18 kg
