BC ADI-11 Rearview camera Audi Škoda

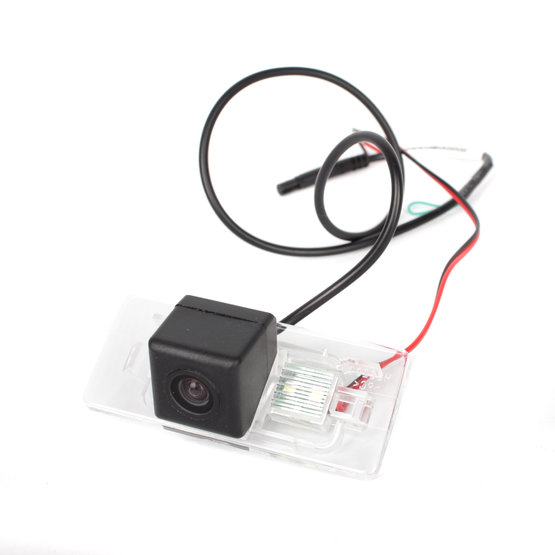

OEM colour parking camera to install into the rear licence plate light body. The camera includes an LCD light that replaces the original lighting. For Audi A4, A5, Q3, Q5, Porsche Panamera, Škoda Superb kombi cars.

For cars:

• AUDI A4   (09-12)
• A5  (08-14)
• Q3 (13-14)
• Q5 (09-14)
• Porsche Panamera
• Škoda Superb kombi
• and others with 8T0 943 021C part number

Technical parameters:

• sensing sensor: CMOS 1/3"
• option to enable/disable to display the guide lines
• electronic shutter: 1/60 1/10000 sec.
• minimum lighting: 0.05Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal scanning angle: 120°
• image display: mirror image
• white balance: automatic
• working temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatic
• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• power cord: 30cm
• video output: 1.0V / 75 Ohm
• power supply: 12V DC
• consumption: <1W
• LED colour: cold white

Camera dimensions:

• base 32 x 75 mm
• pitch 62 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
