Discontinued

BC ADI-12 Rearview camera Audi Q7 A8

| BC ADI-12

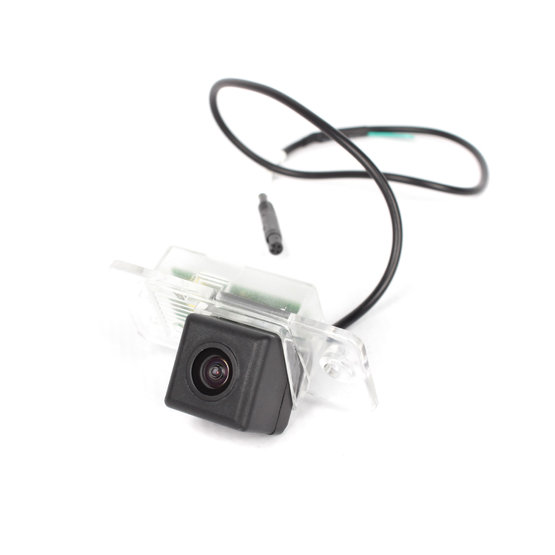

OEM colour parking camera to install into the rear licence plate light body. The camera includes an LCD light that replaces the original lighting. For Audi Q7, A8, S8 cars.


Discontinued

OEM colour parking camera to install into the rear licence plate light body. The camera includes an LCD light that replaces the original lighting. For Audi Q7, A8, S8 cars.

For cars:

  • AUDI Q7
  • AUDI A8
  • AUDI S8 (13-14)

Technical parameters:

  • sensing sensor: CMOS 1/3"
  • option to enable/disable to display the guide lines
  • electronic shutter: 1/60 1/10000 sec.
  • minimum lighting: 0.05Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • number of TV lines: 700 TVL
  • weather protection: IP67
  • horizontal scanning angle: 120°
  • image display: mirror image
  • white balance: automatic
  • working temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatic
  • signal cable: length 8 m (CINCH / RCA connector)
  • double shielding of the signal cable
  • power cord: 30cm
  • video output: 1.0V / 75 Ohm
  • power supply: 12V DC
  • consumption: <1W
  • LED colour: cold white

Camera dimensions:

  • base 31 x 69 mm
  • pitch 58 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Connectors CVBS-RCA
Brand of the car Audi
Model of the car Q7, A8
Use OEM
Signal analog
For cars passenger
Weight 0.274 kg
