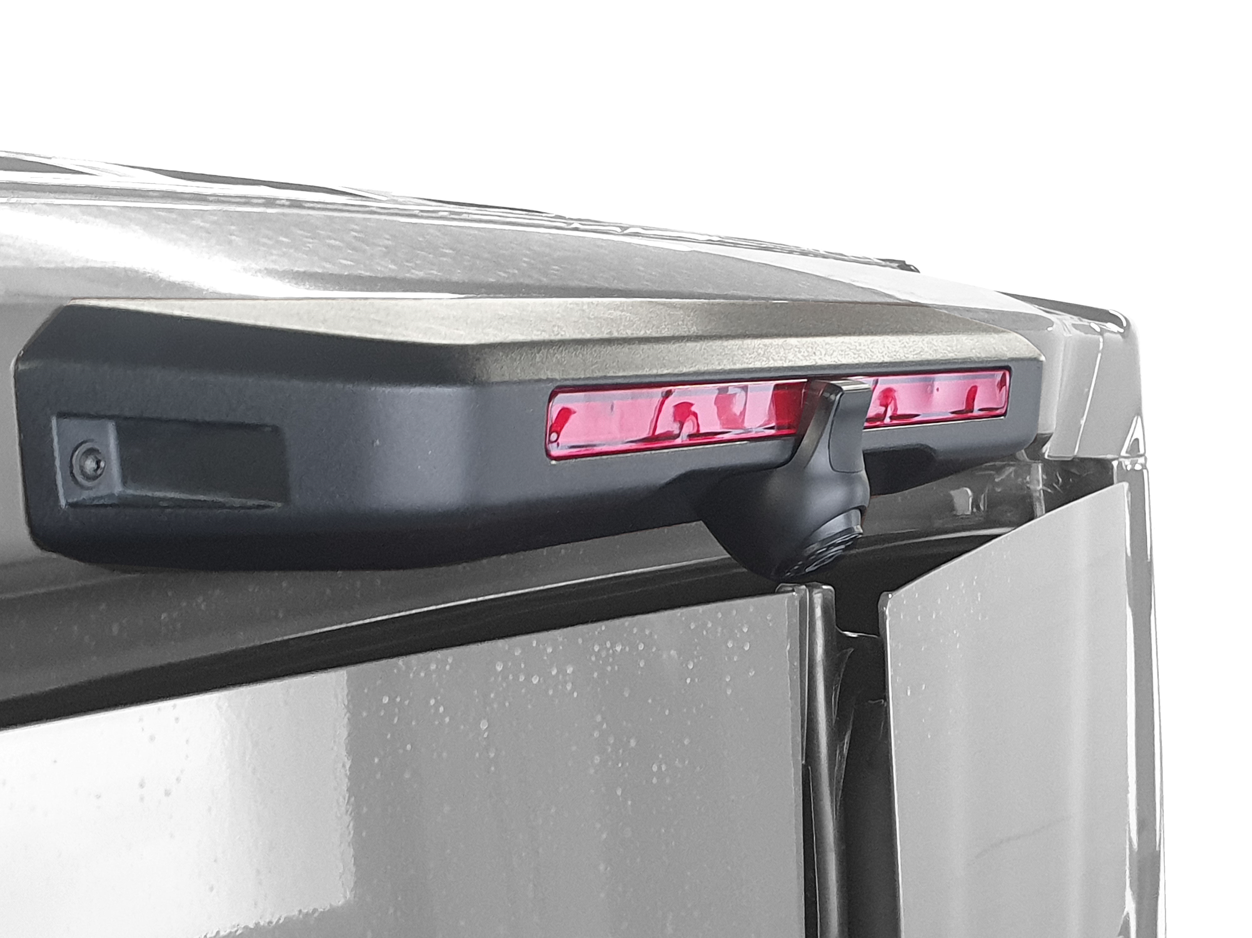

BC DAILY Camera for Iveco Daily rectangular brake-light (2020-)

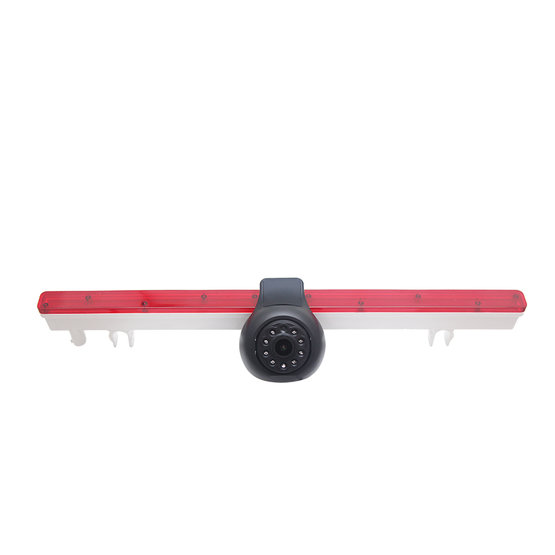

The camera brake lamp comes with LED light source. Installation of the camera is done by simply replacing the rectangular brake lamp by the brake lamp with a camera integrated and connecting It to the original plugs.

.

For cars:

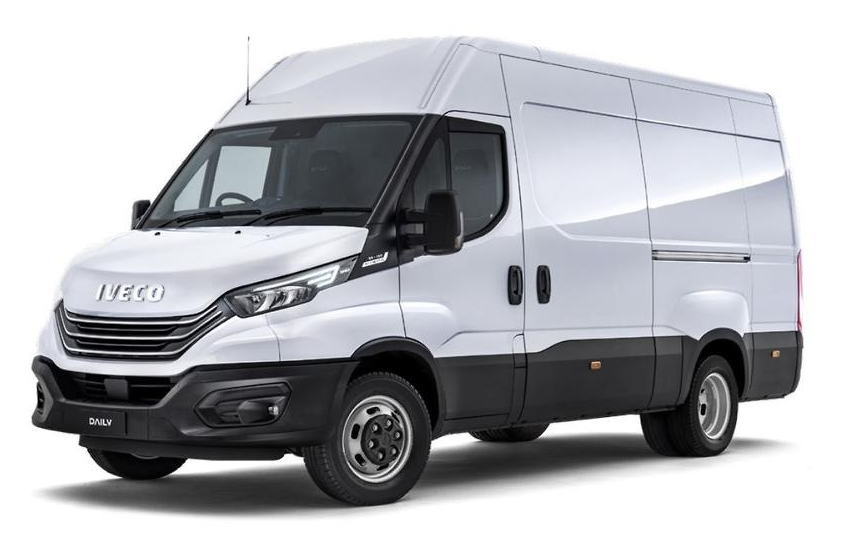

• IVECO Daily (2022-) with a rectangular brake lamp

.

.

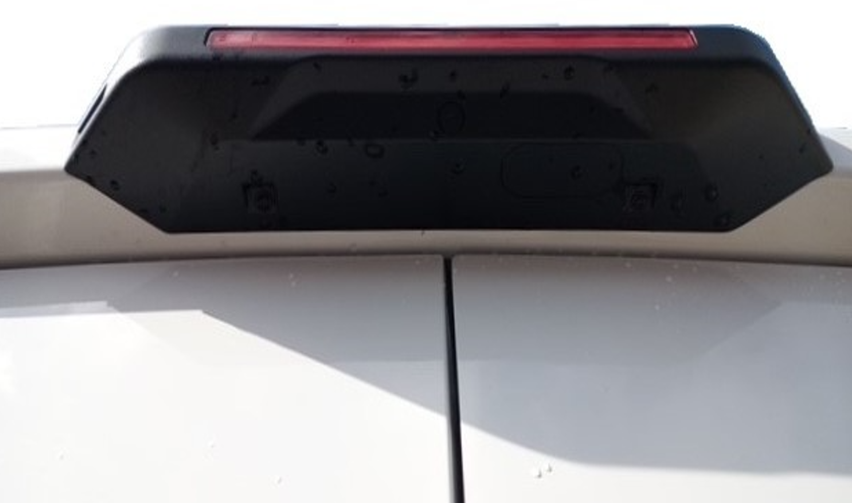

Before:

.

.

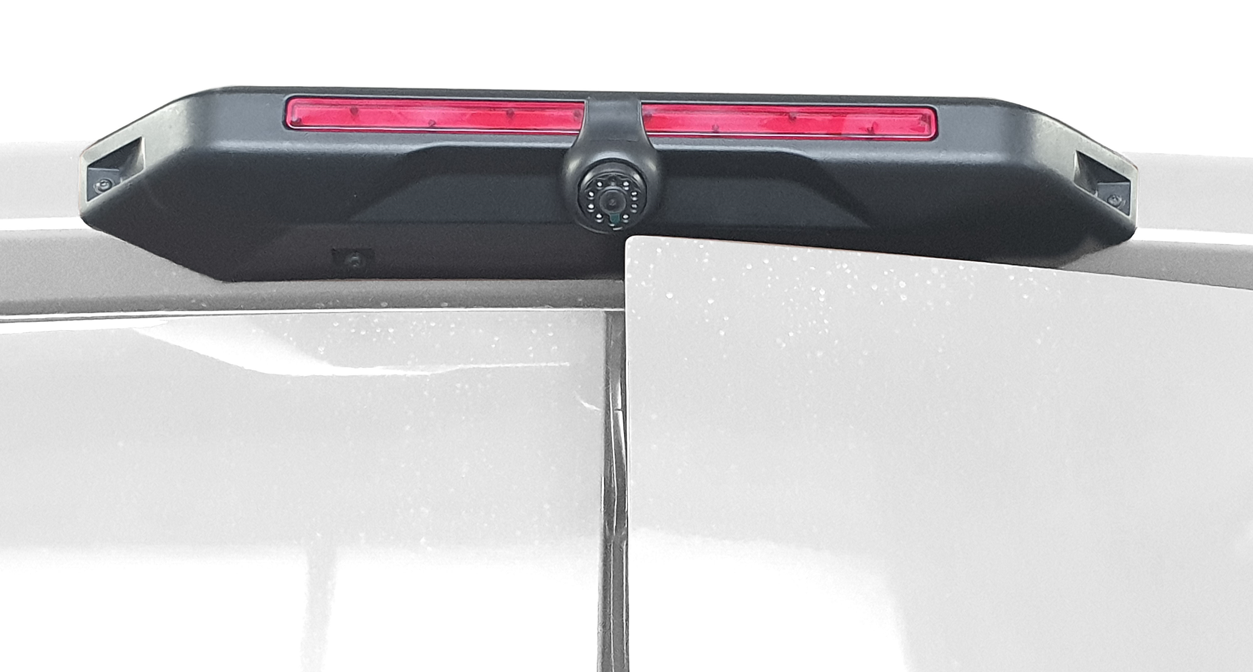

After:

.

.

Note The image from the camera can be displayed on a monitor / head unit / navigation that has a CVBS video input with a CINCH or M12 connector. OEM headunits usually not fitted with such a video input.

.

Technical features:

• sensor chip:                     CMOS PC3089 1/4"
• lens tilt:                           adjustable
• minimum illumination:       0.01Lux (while IR LEDs on)
• TV system:                       PAL
• signal type:                      analog, CVBS
• resolution:                        600 TV lines
• effective pixels:                 756×504
• IR illumination:                 automatic, 8x IR LEDs
• max IR light lenght:           15m
• IP protection:                    IP69
• view angle:                       120° (horizontal)
• video output:                    1.0V / 75Ohm
• working temperature:        from -20 °C to + 75 °C
• signal cable length:           10m terminated with M12 4pin connectors (male / female)
• reduction in the package:   M12 4pin / CINCH connector
• power cable:                     with free ends, length 1m (use only if the camera will not be powered from the monitor)
• brake lamp dimensions:     18 x 340 mm
• E-mark:                            R148, R10
