BC DOBLO Rearview camera in-brake light
|
BC DOBLO

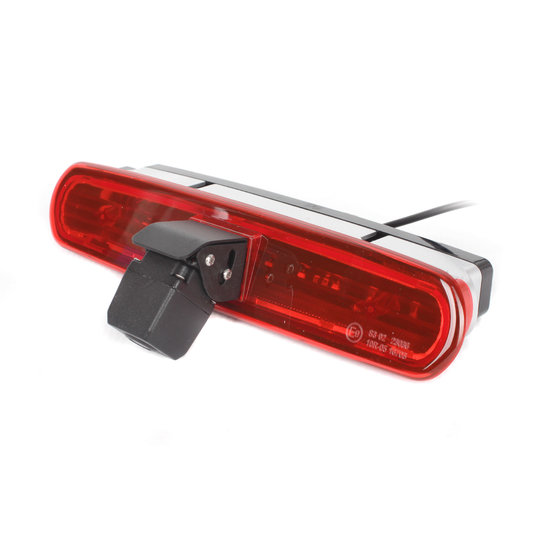

Rearview camera in brakelight, Opel Combo, Fiat Doblo (10-)
_bc_doblo/1-bc-doblo.jpg "BC DOBLO Rearview camera in-brake light")
_bc_doblo/4-bc-doblo.jpg "BC DOBLO Rearview camera in-brake light")
_bc_doblo/3-bc-doblo.jpg "BC DOBLO Rearview camera in-brake light")
_bc_doblo/2-bc-doblo.jpg "BC DOBLO Rearview camera in-brake light")
Rearview camera in brakelight, Opel Combo, Fiat Doblo (10-).
Suitable for cars:
- FIAT Doblo (2010->2022)
- OPEL Combo (2011-2017)
Technical parameters:
- Sharp CCD 1/4 "sensor chip
- IR LEDs
- 14 mm diameter lens
- electronic shutter: 1/50 1/10000 sec.
- minimum illumination: 0,1Lux
- signal / noise ratio:> 48 db
- TV system: NTSC
- the number of TV lines: 420
- protection: IP68
- view angle: 170°
- video Output: 1.0V / 75Ohm
- white balance: auto
- working temperature from -30 °C to + 70 °C
- power and signal cable for the camera: cca.80cm
- signal cable length 10m terminated with RCA connectors (CINCH)
- power cable length 1 m
Camera dimensions:
- base 40 x 200 mm
Parameters
| Brand of the car | Fiat, Opel |
|---|---|
| Use | OEM |
| Signal | analog |
| Connectors | CVBS-RCA, M12 |
| For cars | commercial |
| Model of the car | Combo, Doblo |
| Weight | 0.74 kg |
