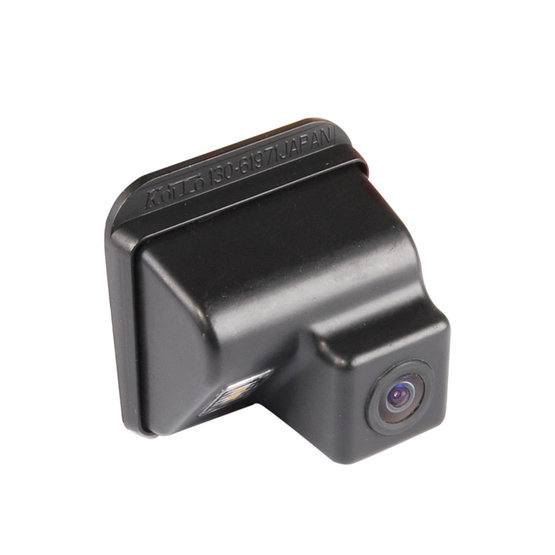

BC MAZ-04 Rearview camera Mazda 3 6 CX7
|
BC MAZ-04
OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.
OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.
Suitable for the car models:
- MAZDA 3 (2004-2009)
- MAZDA 6 I. [GG][GY](2002-1/2008)
- MAZDA CX-7
Technical parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 30 x 45 mm
- pitch between attachment points 50 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Model of the car | 3, 6 I., CX-7 |
|---|---|
| Brand of the car | Mazda |
| Connectors | CVBS-RCA |
| For cars | passenger |
| Use | OEM |
| Signal | analog |
| Weight | 0.375 kg |
Manuals and support
Need help?
Our technical support staff is ready to help and assist our customers. On the phone, by email or instant messaging on working days 8am-4.30pm
