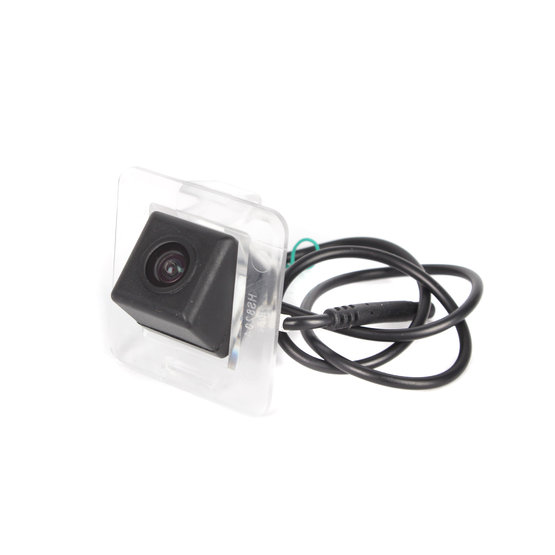

BC MCD-13 Rearview camera Mercedes GLK
|
BC MCD-13
OEM color parking camera for installation into the original opening for the parking camera. For Mercedes GLK X204 cars.
_bc_mcd-13/1-bc-mcd-13.jpg "BC MCD-13 Rearview camera Mercedes GLK")
_bc_mcd-13/3-bc-mcd-13.jpg "BC MCD-13 Rearview camera Mercedes GLK")
_bc_mcd-13/2-bc-mcd-13.jpg "BC MCD-13 Rearview camera Mercedes GLK")
OEM color parking camera for installation into the original opening for the parking camera. For Mercedes GLK X204 cars.
For cars:
- Mercedes GLK-class X204 (10-12)
Technical parameters:
- sensing sensor: CMOS 1/3"
- option to enable/disable to display the guide lines
- electronic shutter: 1/60 1/10000 sec.
- minimum lighting: 0.05Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 700 TVL
- weather protection: IP67
- horizontal scanning angle: 120°
- image display: mirror image
- white balance: automatic
- working temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatic
- signal cable: length 8 m (CINCH / RCA connector)
- double shielding of the signal cable
- power cord: 30cm
- video output: 1.0V / 75 Ohm
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- 45 x 50 mm
- pitch 44 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Use | OEM |
|---|---|
| For cars | passanger |
| Signal | analog |
| Plugs | CVBS-RCA |
| Brand of the car | Mercedes |
| Model of the car | GLK-Class |
| Weight | 0.261 kg |
