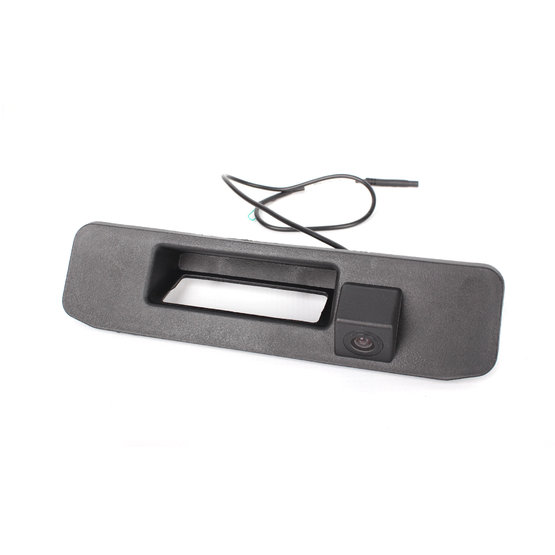

BC MCD-72 Camera in handle Mercedes ML
|
BC MCD-72
OEM color rearview camera for 5th door handle installation, for MERCEDES ML, GLC, GLE, GLA cars.
OEM color rearview camera for 5th door handle installation.
Suitable for cars:
- MERCEDES M-class [W166] (2013-2015)
- MERCEDES GLA (2015->)
- MERCEDES GLC (2015->)
- MERCEDES GLE (2015->)
- MERCEDES A-class [W176] (6/2012->)
Specification:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 52 x 190 mm
- pitch of mounting screws 150 mm
NOTE: The camera is designed for aftermarket head units with RCA camera input. Using with oem radio is likely to require the specific video adapter for parking camera!
Parameters
| Model of the car | GL-Class, A-Class, M-Class |
|---|---|
| Signal | analog |
| Brand of the car | Mercedes |
| Connectors | CVBS-RCA |
| Use | OEM |
| For cars | passenger |
| Weight | 0.511 kg |
