BC MINI Camera analog RCA 12-24V
|
BC MINI

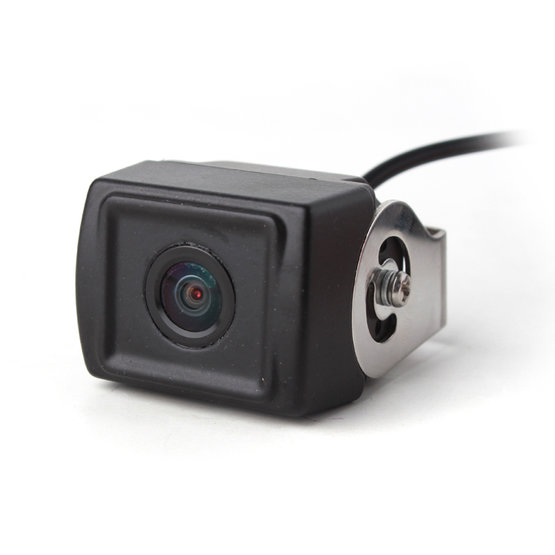

Rearview camera of small size, 12V / 24V, with on/off guide lines function, view angle of 170°, metal body.
Rearview camera of small size, 12V / 24V, with on/off guide lines function, view angle of 170°, metal body.
Technical parameters:
- PC3089 - 1/3" chip
- option to enable / disable guide lines
- electronic aperture: 1/50 1/12000 sec.
- minimum illumination: 0.01 Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (each display is compatible)
- effective points: 720x488
- number of TV lines: 600
- weather protection: IP68
- sensing angle: 170°
- video output: 1.0V / 75 Ohm
- white balance: automatically
- operating temperature from -30 °C to + 75 °C
- signal cable of 7m lenght, with CINCH / RCA connectors (male)
- power cord length 1m
- power supply 12V / 24V
- mirror image
- dimensions: 38 x 37 x 36mm (W x H x D) including the bracket
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Use | UNI |
|---|---|
| For cars | passenger, commercial |
| Signal | analog |
| Connectors | CVBS-RCA |
| Weight | 0.462 kg |
