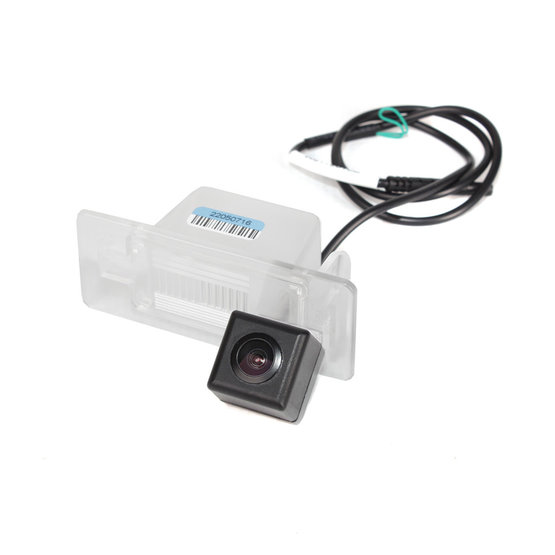

BC OPL-03 Rearview camera Opel Astra K (17-)

| BC OPL-03

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the original light bulb. For Opel Astra K cars (2015-)

Show price
BC OPL-03 Rearview camera Opel Astra K (17-)

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the original light bulb. For Opel Astra K cars (2015-)

Suitable for cars:

  • OPEL Astra K [B16] (06 / 2015-)


Technical parameters:

  • sensor: PC3089 1/3"
  • possibility to turn on / off the display of auxiliary trajectories (guide lines)
  • electronic shutter: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • number of TV lines: 600
  • effective pixels 668 × 576
  • weather protection: IP67
  • sensing angle: 170°
  • camera body: durable "private housing" plastics
  • image display: mirror image
  • white balance: automatic
  • working temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatic
  • signal cable: length 6.2 m terminated with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • power consumption: <1W


Camera dimensions:

  • base 36.5 x 86 mm
  • grip points distance approx. 78 mm


Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Use OEM
For cars passanger
Signal analog
Brand of the car Opel
Plugs CVBS-RCA
Model of the car Astra, Astra K
Weight 0.283 kg
