BC PLATE Camera analog RCA in licence plate
|
BC PLATE

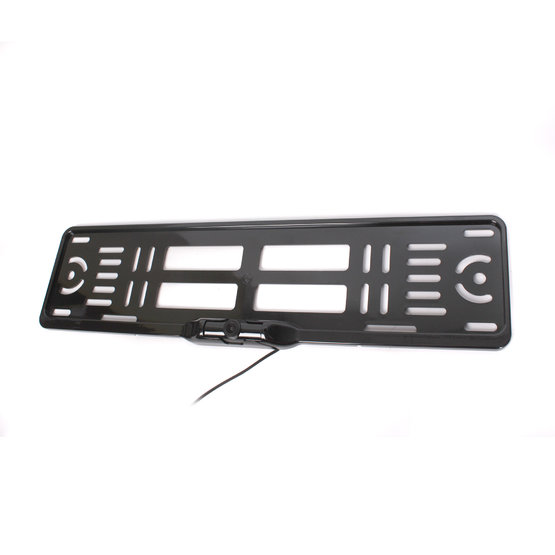

Rearview camera universal, integrated in licence plate pad, possible to adjust the camera view direction, view angle of 170°.
Rearview camera universal, integrated in licence plate pad, possible to adjust the camera view direction, view angle of 170°.
Technical parameters:
- PC1089 - 1/3" chip
- electronic aperture: 1/50 1/12000 sec.
- minimum illumination: 0.01 Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (each display is compatible)
- effective points: 720x488
- number of TV lines: 600
- weather protection: IP68
- sensing angle: 170°
- video output: 1.0V / 75 Ohm
- white balance: automatically
- operating temperature from -30 °C to + 75 °C
- signal cable of 7m lenght, with CINCH / RCA connectors (male)
- power cord length 1m
- power supply 12V
- mirror image
- dimensions: 535 x 30 x 138mm (W x H x D)
Note:
- The registration plate number is inserted into the groove at the top of the pad and use double-sided adhesive tape (not included) to secure the reg.plate in the vertical direction.
- The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Signal | analog |
|---|---|
| Connectors | CVBS-RCA |
| Use | UNI |
| For cars | commercial, passenger |
| Weight | 0.692 kg |
