Discontinued

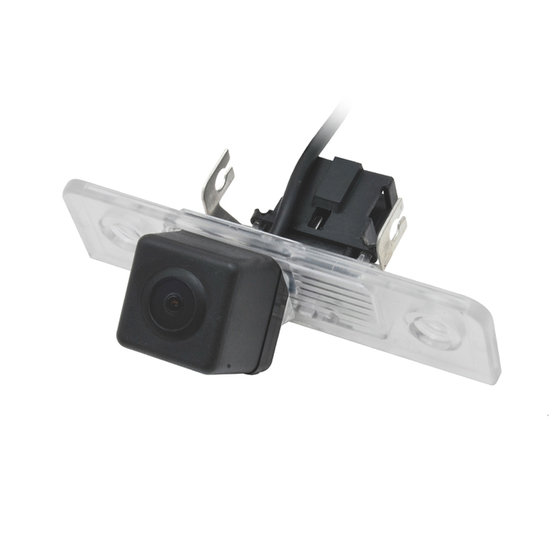

BC SKO-03 Rearview camera Škoda Octavia II-2

| BC SKO-03

OEM colour parking camera to install into the rear licence plate light body. There is a conector in the camera body for the attachning the cables of the original light bulb.


Discontinued

OEM colour parking camera to install into the rear licence plate light body. There is a conector in the camera body for the attachning the cables of the original light bulb.

Assigned for the car models:

  • ŠKODA Octavia II. (2009 ->) after the facelift model

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 25 x 90 mm
  • hole pitch for screws 66,2 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Plugs CVBS-RCA
Model of the car Octavia II.
Brand of the car Škoda
For cars passanger
Use OEM
Signal analog
Weight 0.3 kg
