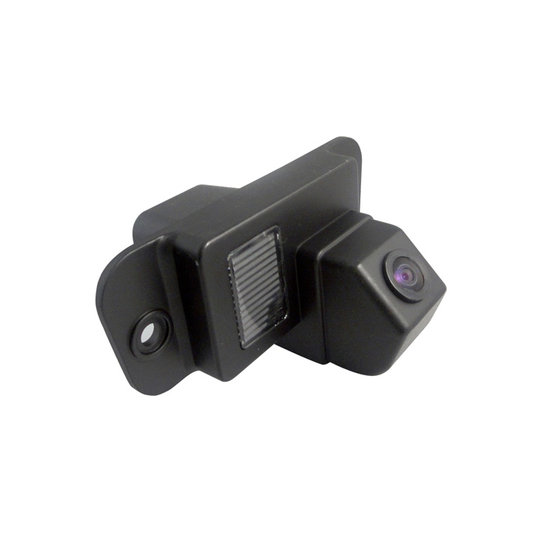

BC SSG-69 Rearview camera Ssangyong Actyon
|
BC SSG-69
OEM colour parking camera to install into the place of rear licence plate, for SSANGYONG Actyon cars. There is a place in the camera body assigned for the original light bulb base.
OEM colour parking camera to install into the place of rear licence plate, for SSANGYONG Actyon cars. There is a place in the camera body assigned for the original light bulb base.
Suitable for cars:
- SSANGYONG Actyon
Specification:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 39 x 96 mm
- hole pitch for screws 77 mm
NOTE: The camera is designed for aftermarket head units with RCA camera input. Using with oem radio is likely to require the specific video adapter for parking camera!
Parameters
| Brand of the car | Ssang Yong |
|---|---|
| Signal | analog |
| Connectors | CVBS-RCA |
| Use | OEM |
| For cars | passenger |
| Model of the car | Actyon |
| Weight | 0.382 kg |
