BC SUB-11 Rearview camera Impreza Forester
|
BC SUB-11

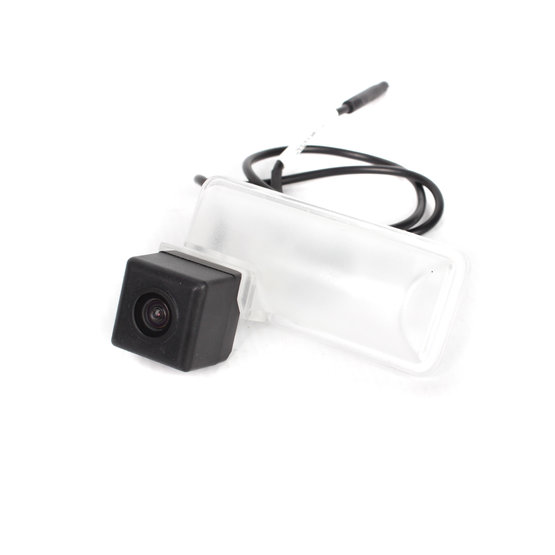

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Subaru Impreza, Forester, Legacy cars.
OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Subaru Impreza, Forester, Legacy cars.
For cars:
- Subaru Impreza (12-)
- Subaru Forester (13-)
- Subaru Legacy
- Subaru BRZ
- Subaru Exige
Technical parameters:
- sensing sensor: CMOS 1/3"
- option to enable/disable to display the guide lines
- electronic shutter: 1/60 1/10000 sec.
- minimum lighting: 0.05Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 700 TVL
- weather protection: IP67
- horizontal scanning angle: 120°
- image display: mirror image
- white balance: automatic
- working temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatic
- signal cable: length 8 m (CINCH / RCA connector)
- double shielding of the signal cable
- power cord: 30cm
- video output: 1.0V / 75 Ohm
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 34 x 79 mm
- pitch 56 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Model of the car | Forester, Legacy, BRZ, Impreza |
|---|---|
| Signal | analog |
| Brand of the car | Subaru |
| Connectors | CVBS-RCA |
| For cars | passenger |
| Use | OEM |
| Weight | 0.281 kg |
