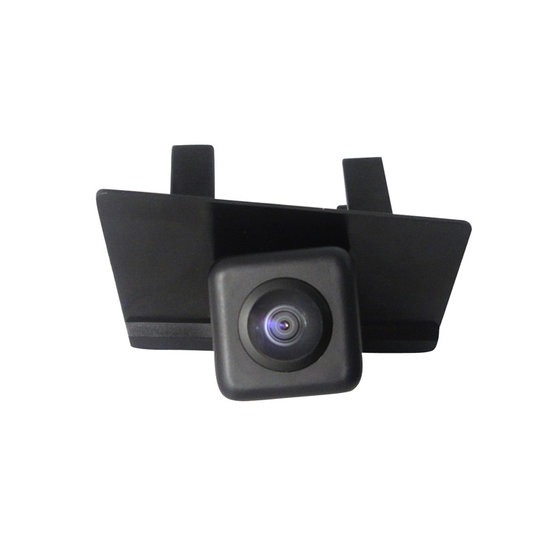

BC SUZ-02 Rearview camera Suzuki Kizashi
|
BC SUZ-02
Parking camera installed in the space of license plate lighting.
Suitable for the car models:
- SUZUKI Kizashi
Technical Parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Brand of the car | Suzuki |
|---|---|
| Signal | analog |
| Connectors | CVBS-RCA |
| Use | OEM |
| For cars | passenger |
| Model of the car | Kizashi |
| Weight | 0.295 kg |
