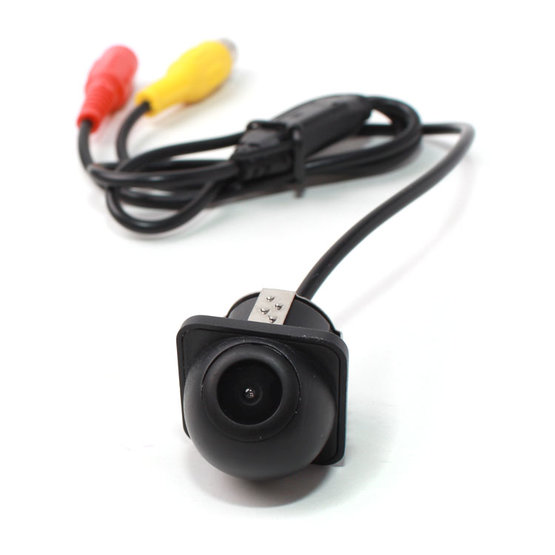

BC UNI-04 Rearview camera analog RCA
|
BC UNI-04
Rear view camera universal, with guide lines option to turn on, PC1030 chip, view angle 160°, installed in the drilled hole.
Rear view camera universal, with guide lines option to turn on, PC1030 chip, view angle 160°, installed in the drilled hole.
Technical parameters:
- PC1030 1/4" sensor
- Minimum illumination: 0,2Lux
- S / N Ratio:> 60 db
- TV system: NTSC
- effective pixels: 648x488
- resolution: 420 TV lines
- power supply 9V-12V
- weather protection: IP66
- Viewing angle: 160°
- mirror image
- with guide lines
- Video Output: 1.0V / 75 ohm
- temperature from -20 °C to + 80 °C
- camera body measures: 28x25x25 mm
- power cable length 1 m
- signal cable length of 6m terminated with RCA connectors
- Drill tool 20 mm - in the package
Note:
- Adjusting the Direct Image to Use the Camera in Front: - Cut the white wire
- Turn on the guide lines: - Cut the green wire
Parameters
| Signal | analog |
|---|---|
| Connectors | CVBS-RCA |
| Use | UNI |
| For cars | passenger |
| Weight | 0.21 kg |
