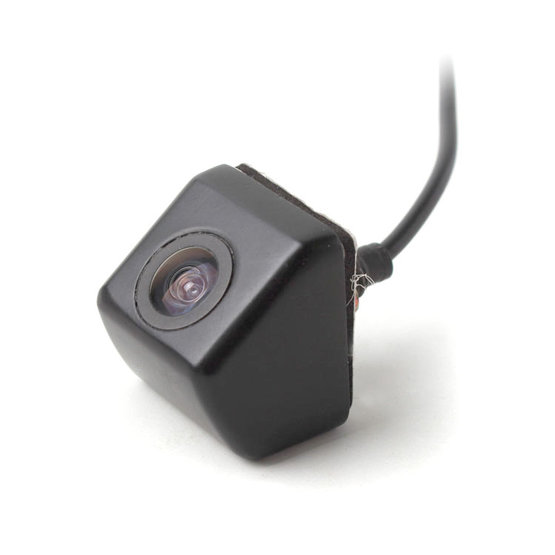

BC UNI-05 Rearview camera analog RCA

| BC UNI-05

Universal parking camera, for exterior, angle of view 140°, metal body, screw-on mounting, possibility of installation front aim, back aim, on a vertical or on horizontal surface, with the possibility of switching the guide lines on.

Discontinued

Universal parking camera, for exterior, angle of view 140°, metal body, screw-on mounting, possibility of installation front aim, back aim, on a vertical or on horizontal surface, with the possibility of switching the guide lines on.

Technical parameters:

1G3P 1/4 "Sensor
effective pixels: 648x488
The number of TV lines: 480
Viewing angle: 140°
poer supply: 12V
TV system: NTSC
weather protection: IP67
Minimum illumination: Less than 1 Lux
Electronic shutter: 1/60 1/10000 sec
signal cable length of 6 m ended with RCA connectors
power cable length 1 m

Functions:

WHITE LOOP - guide lines - displayed after cutting
GREEN LOOP - image orientation - mirror image after cutting, for rearward installation as a parking camera
BEIGE LOOP - image orientation - upside down after cutting, installation on vertical surface

If the loops are intact, the camera sends the image:

direct - forward installation
upside up - installation on a horizontal surface (from bottom)
without guide lines

Parameters

Signal	analog
Plugs	CVBS-RCA
Use	UNI
For cars	passanger
Weight	0.197 kg
