BC UNI-07 Camera analog auto IR 12V-24V

| BC UNI-07

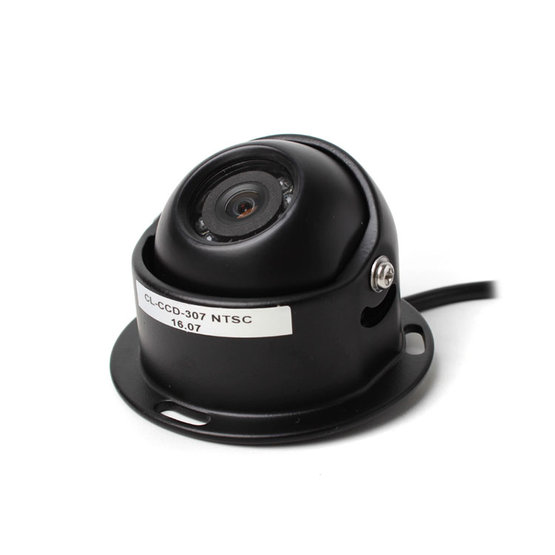

CCD rear view camera universal, 12V / 24V, without guide lines, view angle of 110° with automatic IR illumination, metal body.


Discontinued

CCD rear view camera universal, 12V / 24V, without guide lines, view angle of 110° with automatic IR illumination, metal body.

Technical parameters:

  • Sharp 1/4 "Sensor
  • illumination IR LEDs (9 pieces)
  • electronic shutter: 1/50 1/10000 sec.
  • minimum illumination: 0,05Lux
  • S / N Ratio:> 48 db
  • TV system: NTSC
  • effective pixels: 510x492
  • TV lines: 420
  • weather protection: IP66
  • viewing angle: 110°
  • video Output: 1.0V / 75 ohm
  • white balance: Auto
  • operating temperature from -30 °C to + 70 °C
  • signal cable terminated with RCA connectors
  • power cable length: 1 m
  • power supply 12V / 24V
  • mirror image
  • the camera body dimensions: Ø 85x50 mm

Parameters

Signal analog
Plugs CVBS-RCA, M12
Use UNI
For cars commercial
Weight 0.279 kg
