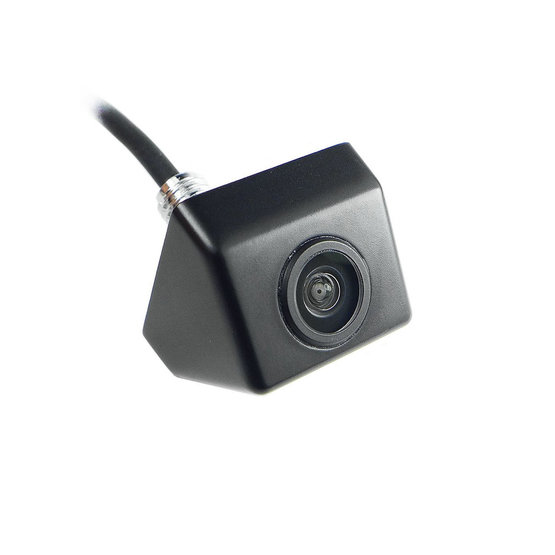

BC UNI-11 Mini camera, RCA, 800TVL, 128°

| BC UNI-11

Universal parking camera with 128° view angle for horizontal or vertical installation, the option to turn on/off the guide lines, mirror image, installation in a hole of 8 mm.


Universal parking camera with 128° view angle for horizontal or vertical installation, the option to turn on/off the guide lines, mirror image, installation in a hole of 8 mm.

Technical parameters:

  • 1/4" CMOS sensor
  • view angle: 128°
  • resolution: 800 TV lines
  • minimum illumination: 0.01Lux
  • TV system: NTSC
  • current consumption: 25-55 mA
  • effective points: 960x480
  • power supply 9V-12V
  • weather protection: IP69K
  • video output: 1.0V / 75 Ohm
  • working temperature from -40 °C to +75 °C
  • camera dimensions: 26,5x25x19 mm
  • signal cable length 8m terminated with CINCH connectors

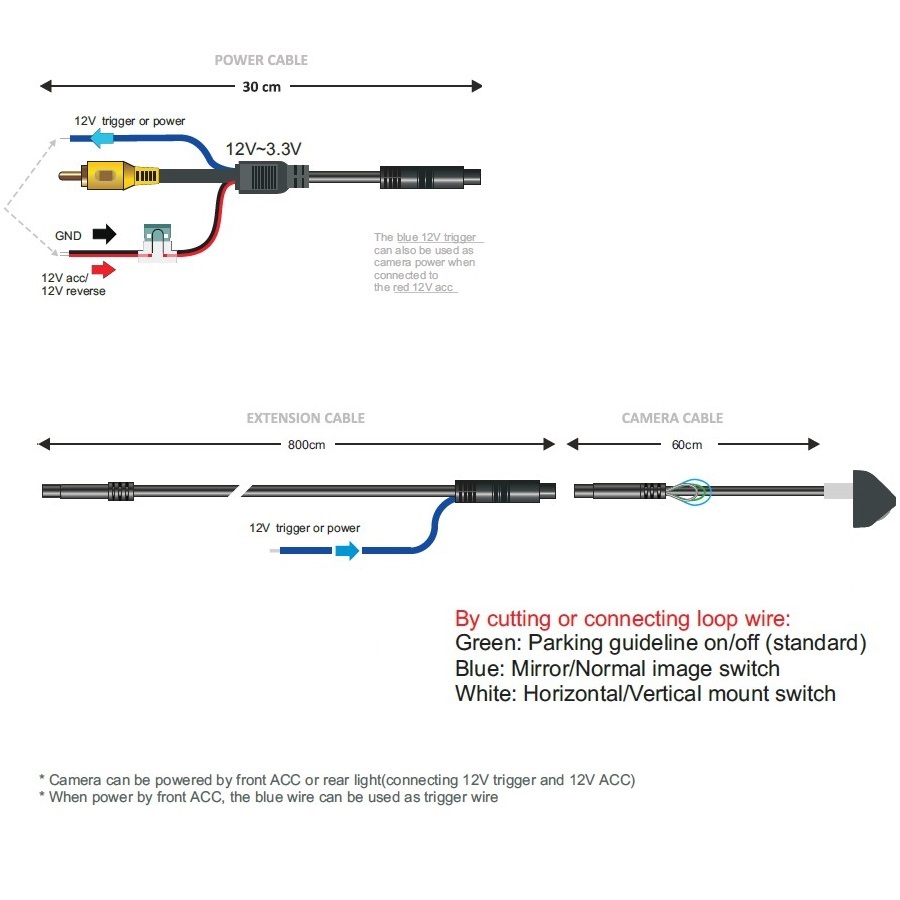

Image orientation (to change by cutting the color loop)

  • GREEN loop  - Guide lines
  • BLUE loop    - Right / Left flip (mirror image)
  • WHITE loop  - Horizontal / Vertical flip


Included:

  • video camera
  • cable 8m + reduction 30cm

Parameters

Use UNI
For cars passanger
Signal analog
Plugs CVBS-RCA
Weight 0.29 kg
