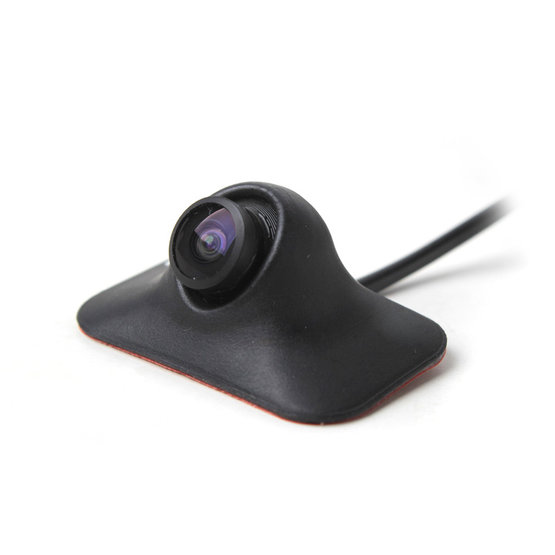

BC UNI-FLAT Rearview camera analog RCA
|
BC UNI-FLAT
Universal parking camera of flat design, the possibility to use as a front camera without guide lines or parking cameras with guide lines, 130° angle of view, installation to flat surface with 3M tape.
Universal parking camera of flat design, possible to turn on/off guide lines and mirror image, 130° angle of view, installation to flat surface with 3M tape.
Technical parameters:
- PC3089 1/3" scanning chip
- minimum lighting: 0.1lux
- TV system: NTSC
- resolution: 580 TV lines
- power supply 9V-12V
- weather protection: IP68
- sensing angle: 130°
- possible to adjust in vertical direction
- video output: RCA / CINCH 1.0V / 75 Ohm
- operating temperature from -25 °C to + 80 °C
Camera dimensions:
- base 29 x 47 mm
- height 20 mm
- power cord length 2m
- signal cable length 7.2 m terminated by RCA / CINCH connector
Note: The camera is intended for non-original (aftermarket) head units with RCA AV input. Use with the original head unbit would require the video adapter to be connected to the parking camera!
Parameters
| Use | UNI |
|---|---|
| For cars | passenger |
| Signal | analog |
| Connectors | CVBS-RCA |
| Weight | 0.209 kg |
