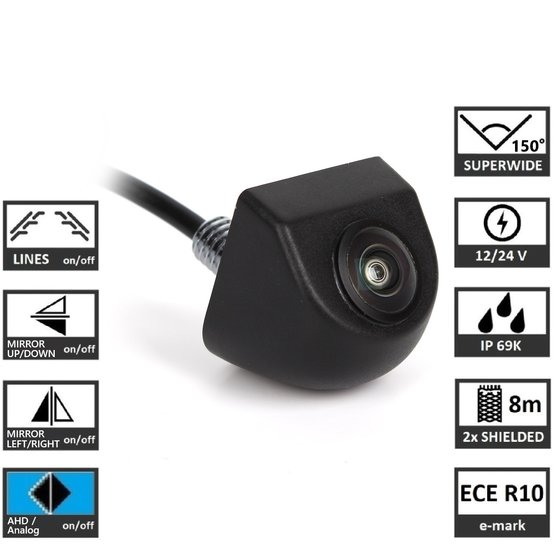

BC UNI Universal rearview camera 1080p AHD/RCA, 150°

| BC UNI

Universal rearview camera contains 4 setup functions, allows to change the video signal type (AHD/Analog), to switch the image Left-Right and Up-Down picture orientation and to turn on/off the guide lines. Any AHD or analog monitor can be connected to the camera. The camera can be mounted on both a horizontal and vertical surface.

Show price
BC UNI Universal rearview camera 1080p AHD/RCA, 150°

Technical parameters:

  • 1/3" low light HD CMOS sensor
    • view angle: 150° horizontally
    • signal type: AHD - image resolution 1920x1080 (1080p)
    • signal type: Analog - image resolution 800 TVL
    • aperture F1.2
  • power supply: 12V/24V
  • TV system: NTSC
  • BLC auto
  • weather protection: IP69
  • Cabling
    • double shielding
    • length 8 m
    • terminated with a CINCH connector
    • slim connector 5mm
  • 2 power connection options
    • from the reversing light
    • from the ignition
  • camera dimensions: 29,3 x 25,3 x 23 mm
  • working temperature -20℃ to 75℃
  • ECE R10


Features:

  • GREEN loop  - Guide lines
  • BLUE loop    - Right / Left flip (mirror image)
  • BROWN loop  - Horizontal / Vertical flip
  • PURPLE loop - Video Signal type switch (AHD 1080p vs Analogue 800 TVL)

Parameters

Use UNI
For cars passanger
Signal AHD, analog
Plugs CVBS-RCA
Weight 0.266 kg
