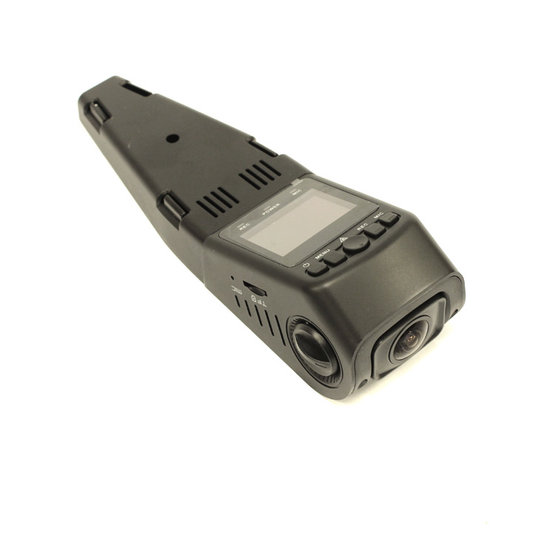

BDVR 03 Onboard camera, WDR, 170°

Full HD Car DVR for installation under the central rearview mirror with gravity sensor and "Motion Detect" function. Possibly to connect an external GPS antenna to record the route through Google Maps.

The camera of an original design, includes cover for the cables, an ideal location is on the windshield behind the central rearview mirror, first make the camera settings (parameters, location, shooting angle) and then set the mirror up to a proper position, the display need not be visible - used especially for the parameters setting. Package includes AV cable, the picture can be displayed on the monitor with AV input.

Technical parameters:

• sensors resolution:                     3 megapixels
• sensors size:                              1/3´´
• lens material:                              glass
• viewing angle:                            170°
• video resolution:                         FHD1920 x 1080, HD 1080 × 720
• frame rate:                                  30FPS HD1080p, 60FPS HD720P
• video compression:                    H.264
• TV standard:                               NTSC / PAL
• screen size:                                1.5-inch
• storage temperature range:       20° C to 70° C
• operating temperature range:    -10° C to 60° C
• humidity operating range:          15% to 65% (RH)
• SD card capacity supports:        4 GB to 32 GB
• input voltage:                             DC5V

Note .: - the video quality depends on the window size and resolution settings on the player
