BENE 302 Keyless entry system with ecu

BENE 302 it is keyless entry module for central locking. It is suitable for any kind of central locking system with mechanical key control. Package includes two remote controllers, with hopping code communications. It is possible learning into module up to 6 pcs remote controllers.

Module BENE 302 allow selecting many functions by request of specifically vehicles:

• selectable lock/unlock impulse duration
• selectable impulse duration of trunk release
• selectable impulse duration of AUX output
• AUX output as closure windows ( VW group vehicles), or other purpose
• operational mode for control lights - normal, continuous, pulse
• control lights – it is possible use with fixed periods of blinking or by Control lights input.
• special function – remote relay (3 relay outputs controlled by remote. Usable as: control of garage doors, winch bumper, etc. )

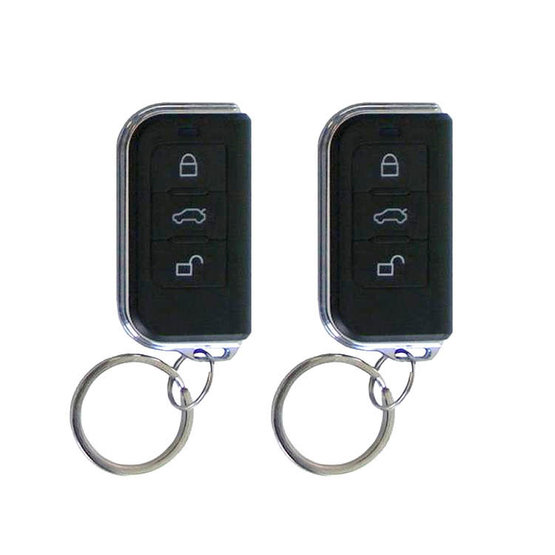

Remote controllers

• 1 way remote: 2pcs with three buttons
• range of remote controller : 50 meters
• number of programmed remote controllers: 6
• finding vehicle by remote: yes

Inputs/Outputs

• output on directional lights: yes
• output for perimeter: yes
• AUX output: yes - impulse duration selectable
• AUX output current: 200 mA
• output for trunk release: relay
• comfort closure impulse: yes

Central locking

• output type: relay
• control signal for electrical central locking: yes
• control signal for pneumatic central locking: yes
• double unlock impulse: yes
• double lock impulse: yes

Technical parameters

• operational temperature: -40°C — +80°C
• voltage supply: 10 -16 V
• RF communication: with hopping code
