BENE 322 Central locking with remote control

| BENE 322

Remote controlled universal CDL for 4 doors. 2 master, 2 slave actuators.

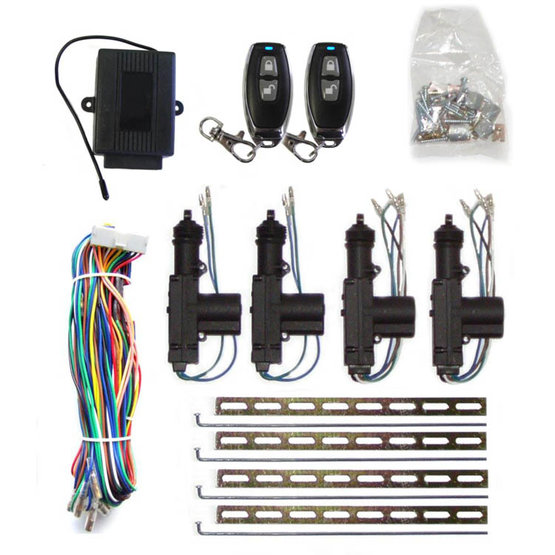

The universal central locking kit BENE for 4 doors with remote controllers.

Actuators

  • 5 wires: 2 pcs
  • 2 wires: 2 pcs
  • Push/pull force: 3 kg
  • Rotatable head: yes
  • Lift of Rod: 15 mm
  • Male bullet connectors
  • Lock / unlock time: 0,5 - 0,6 sec.

Remote controllers

  • Number of remote: 2 pcs
  • Maximal number of programmed remote: 4 pcs
  • Operational frequency: 300 - 350 MHz
  • Operational temperature: 0° – 60°C

Additional functions

  • Lock / Unlock by ignition: yes
  • Output for directional lights: yes
  • Output for trunk: transistor (-250 mA)
  • Trunk open time: 0,5 - 0,6 sec.
  • Installation material: yes
  • Clamps: yes
  • Rods: 4 pcs
  • Main unit: yes
  • Harness: yes

Technical parameters

  • Operational temperature: -20° – 80°C
  • Supply voltage: 10 - 14 V
  • Consumption: <20 mA

Parameters

Product type Keyless entry systems, Central Locking Systems, Central locking systems
Producer BENE
Weight 1.156 kg
