BENE 414 Parking assistant with LED display, 4 sensors

| BENE 414

Rear parking assistant BENE with 4 sensors 20mm and buzzer. The system is activated by reverse gear and indicated by display and accoustic signal which inform the driver about the actual distance from an obstacle.


Rear parking assistant BENE with 4 sensors 20mm and buzzer. The system is activated by reverse gear and indicated by display and accoustic signal which inform the driver about the actual distance from an obstacle.

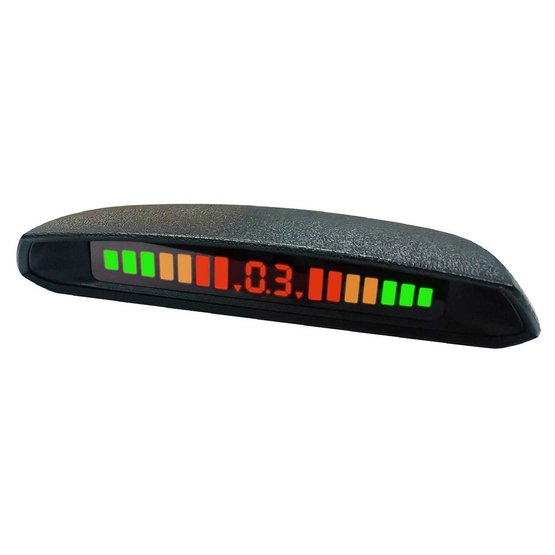

The parking assistant is equipped with four ultrasonic sensors that are installed in the rear bumper. Using sensors, the control unit evaluates the distance from the obstacle. The sensors are installed so that only their outer rim protrudes. BENE 414 signals an obstacle on the display and acoustically - by beeping the buzzer in the vehicle cabin. Approaching the obstacle, the acoustic signal becomes more intense.
The set includes a precise milling drill for drilling the necessary holes in the plastic bumper.

Sensors:

  • number of rear sensors: 4
  • mounting hole diameter: 20 mm
  • color: black
  • to repaint: yes

Display and signaling:

  • audio: yes
  • visual: yes
  • sound signaling volume: > 85 dB
  • maximum obstacle distance recorded:
  • acoustically signaled 1,5 m
  • visually signaled 2,5m
  • signaling zero distance from an obstacle at: 0,3 m

Other parameters:

  • power supply: 10 - 16 V
  • consumption: 5W
  • working temperature: -30°C to +80°C
  • reverse activation: yes

Parameters

Product type Rear sensors
Manufacturer Bene
Sensors colour black matt
Power Suply 12VDC
Display LED display
Sensor type Basic
Weight 0.489 kg
