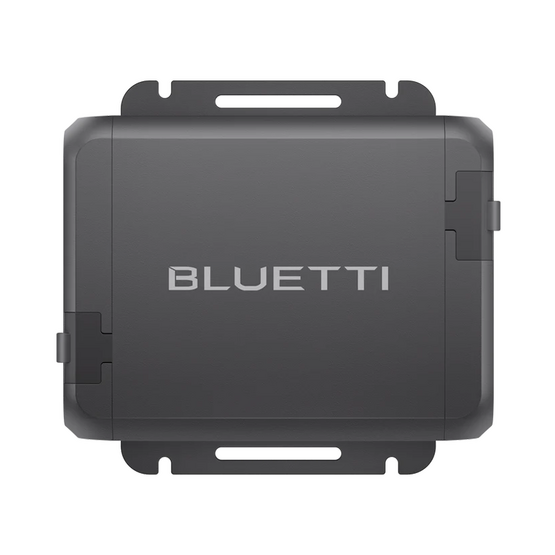

Bluetti BL Charger 1 alternator charger for portable stations

| BL Charger 1

BLUETTI Charger 1 is a smart DC-DC charger that allows you to charge your portable power station while driving. It uses energy from your vehicle's alternator to provide fast and safe charging, ensuring you always have enough power for camping, off-grid work, and long road trips. It supports charging power of up to 560 W.

Show price
Bluetti BL Charger 1 alternator charger for portable stations

Charge 1kWh in Just 2 Hours of Driving

Experience a 6 times faster charging speed to store the excess power from your car's alternator, allowing you to make the most of your power throughout your trips.

Long-Lasting Battery Life for RVing

Seamlessly connect with 12V/24V RV batteries to get your power station charged, no longer worry about power shortages while travelling with your mobile home.

6x Faster Charging Speed

The Charger 1 delivers up to 560W of power - 6X faster than a traditional car charger. Now you can fully charge a 1kWh power station in just 2,5 hours, making it a game-changer for your on-the-go charging experience.

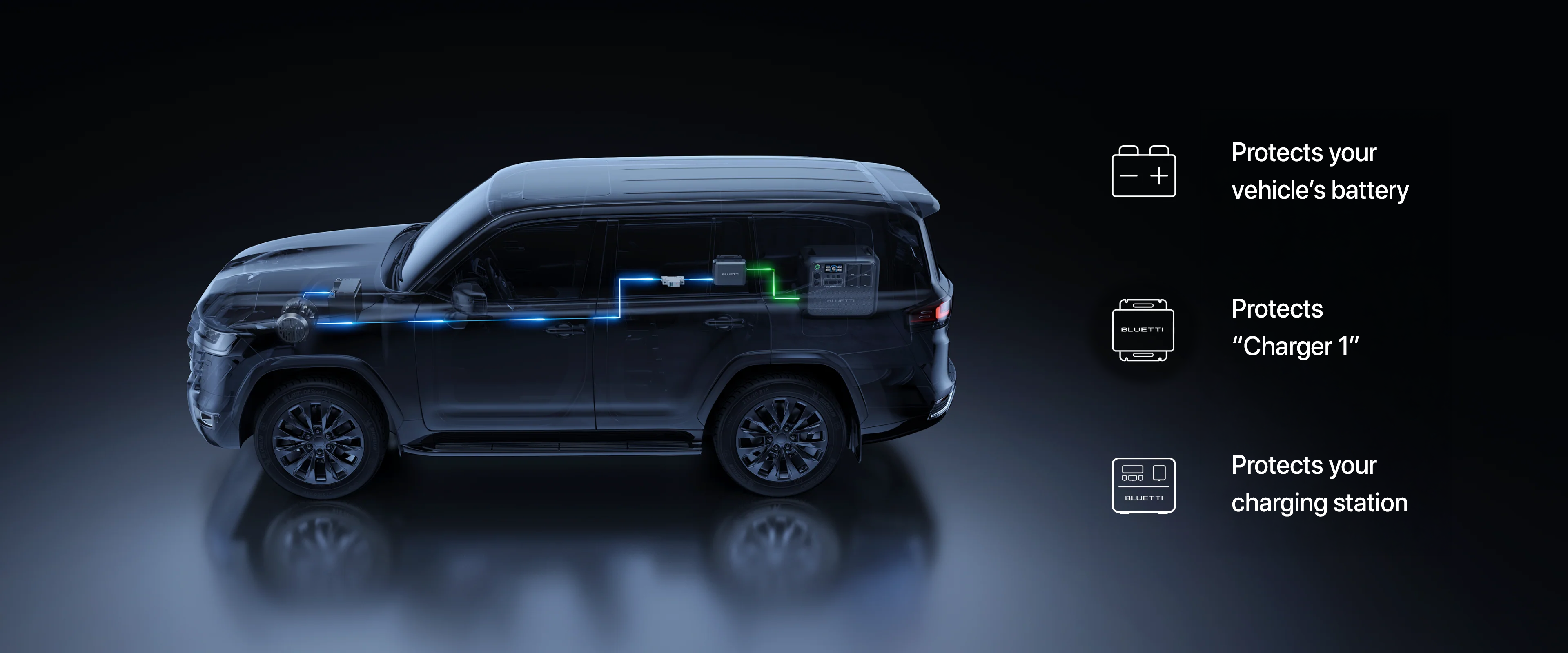

Multi-Layer Protection in Every Charge

  • Prevents your car battery from draining, so you can start your vehicle anytime.
  • Automatic on/off functions and circuit protection to maintain safe operation.
  • Customize the output voltage to ensure it perfectly fits to your energy storage system.

Easy Steps to Install

Easy Install in 4 Steps.
Check the Compatibility Table and Installing Your BLUETTI Charger 1 With Ease.

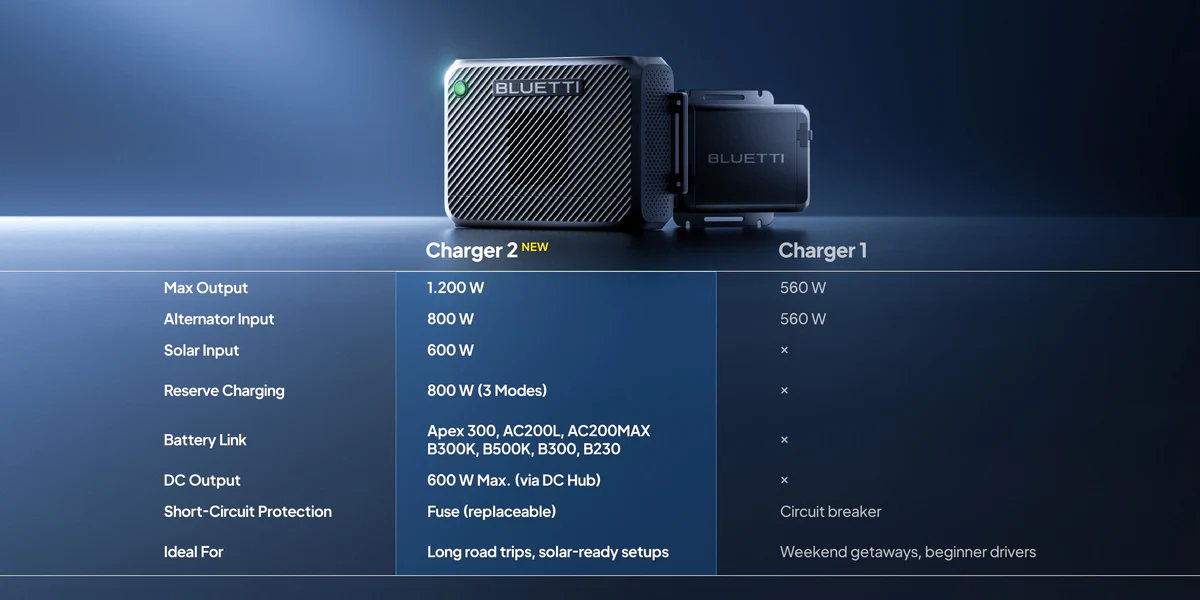

Compare

Specifications

OUTPUT

  • Default Voltage: 27V
  • Voltage Range (with 12V battery): 15,0V to 56,0V (adjustable via app)
  • Voltage Range (with 24V battery): 27,0V to 56,0V (adjustable via app)
  • Current: 10A
  • Power: 560W

INPUT

  • Input Voltage: 12V-14V / 22,5V-28V
  • Input Amperage: 50A-12V / 25A-24V

GENERAL

  • Product Function: Increase output voltage (To charge power station)
  • Compatibility: All BLUETTI power stations & 95% other models on the market
  • Protections: Short circuit/anti-reverse/under-voltage/over-temperature
  • Cooling: Fan cooling
  • Surge Protection: 60A Circuit Breaker (Optional)
  • Operating Temperature: -20°C to 60°C
  • Protection Grade: IP20
  • Noise: 50dB Max.
  • Weight: Approx. 1,2kg

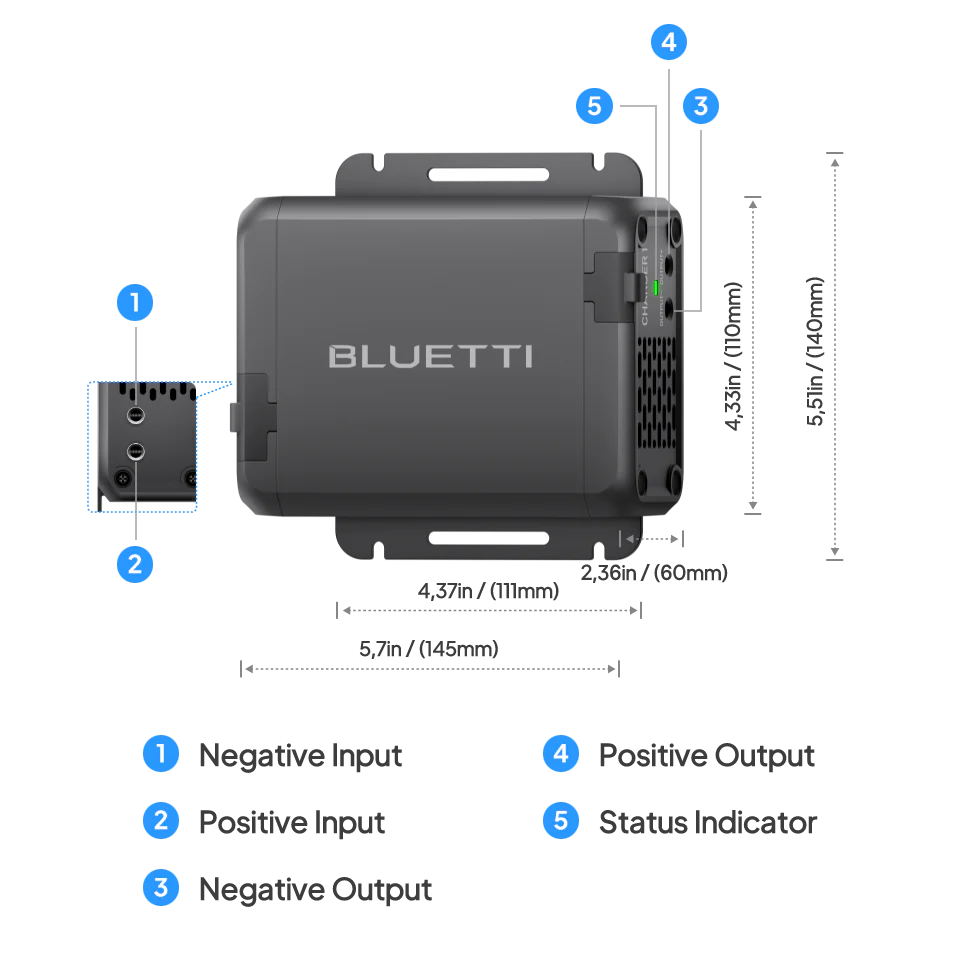

  • Dimensions (L x W x D): 145mm × 110mm × 60mm
  • Warranty: 2 Years
  • App Connection: Bluetooth

IN THE BOX

  • BLUETTI Charger 1 DC-DC × 1
  • DC input Cable × 1
  • MC4 Output Cable × 1
  • Hex Socket Screw × 4
  • Self-tapping Screw × 6
  • Hex Socket Wrench × 1
  • User Manual × 1

Parameters

Product type Charging and batteries
Weight 3.24 kg
