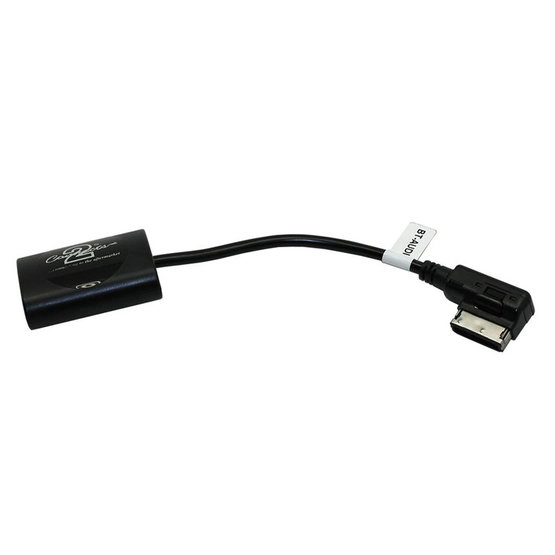

BT-A2DP Audi AMI Bluetooth Audio Adapter

Bluetooth audio streaming (A2DP) wireless module lets you stream music from your mobile phone to the car stereo audio input

Note. Compatible only with oem head unit with software version number "HN + _EU_AU3G_P0533" and later (higher number), older software version may not work despite of the connector fitting well.

Suitable for vehicles with AMI:

• AUDI A3 (2010-)
• AUDI A5 (2009-)
• AUDI A6 (2006-)
• Audi A7 (2009-)
• AUDI A8 (2009-)
• Audi Q5 (2007-)
• AUDI Q7 (2007-)
• Audi R8 (2006-)
• AUDI TT (2007-)

- Transfer music to a distance of five meters from the receiver
- Compatible with mobile phones, tablets, MP3 player with Bluetooth

Technical specifications:

• Bluetooth version 3.0
• Bluetooth protocol: HFPV1.5, A2DPV1.2, AVRCPV1.4 HSP1.2, GAVDP1.2 IOP
• Current consumption: <25 mA
• Power supply: 12V
• Range: min.5
• Sensitivity: -80dBm <0.1% BER
• Frequency range: 2.4GHz-2.480GHz
• Audio performance: SBC Decode
• Audio SNR:> = 75 db

Note. There must be a choice in the radio menu, to choose AUX IN music source. For some radio you can enable this option via diagnostics. If OEM radio already contain Bluetooth, it is necessary to disabled it first.
