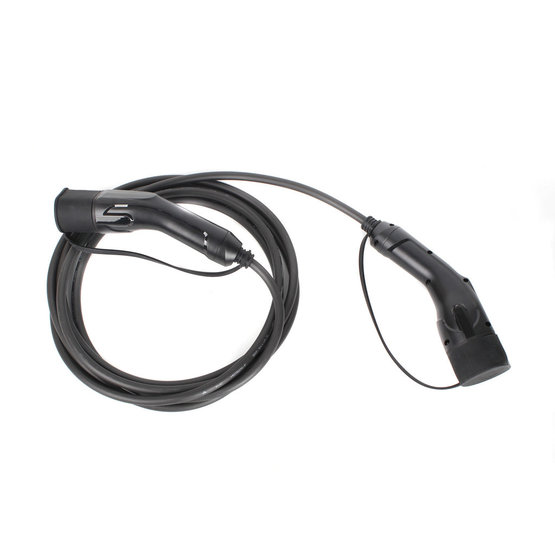

C22i Charging cable for electric cars, 1-phase, 16A / 250V, 3.6kW

Charging cable for electric cars equipped with the type-2 connector, 1-phase, 16A / 250V, 3.6kW.

Key Features:

• Type 2 to Type 2 charging cable
• Compatible with all Type 2 (IEC62196-2) electric vehicles
• Support charging connector lock function
• Silver-plated copper alloy wire, waterproof, flame retardant, impact resistance, less heat generation, more stable for charging
• IP55 standard design for safe use in all outdoor weather conditions
• Ergonomic design charging connector
• Easily bendable and flexiblecable
• CE certificate, tested in TUV
• Color of connectors: Black

General parameters

• Charging standard: IEC62196-2 (Type 2)
• Connector: Type 2 (Male), Type 2(Female)
• Insulation resistance: >1000MΩ Max. @DC 500V
• Contact resistance: 0.5mΩ Max.
• Breakdown voltage: 2000V
• Fireproof grade of rubber: UL94 V-0
• Mechanical life: Unloaded plugged>10000 cycles
• Waterproof protection grade: IP55
• Housing material: Thermoplastic plastic
• Wire material: Copper alloy, silver plated
• Operating temperature: -30~+50℃
• Terminal temperature rise: <50k
• Coupling plug force: <100N
• Cable length: 5 meters

TechnicalSpecifications:
Output parameters

• Rated voltage: AC 250V
• Types of phase: Single-phase
• Max. chargingcurrent: 16A
• Max. charging power: 3.6KW
• Cable specification: 3 x 2.5mm² + 1 x 0.5mm²

In the package:

• Charging cable  x 1 pc
• Storage bag      x 1 pc
• Manual             x 1 pc
