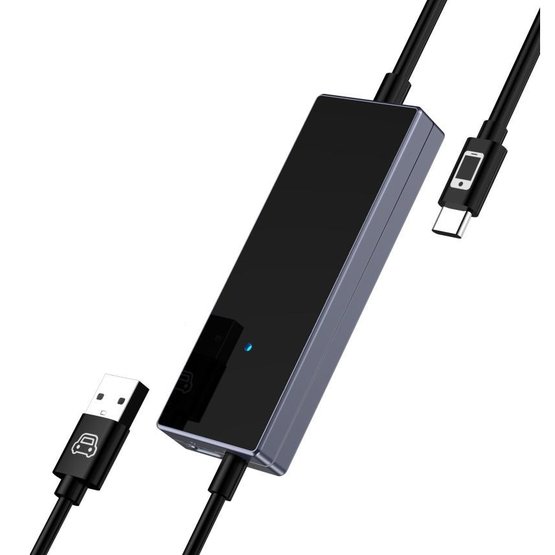

CA450 Phone Mirroring Module via USB Cable

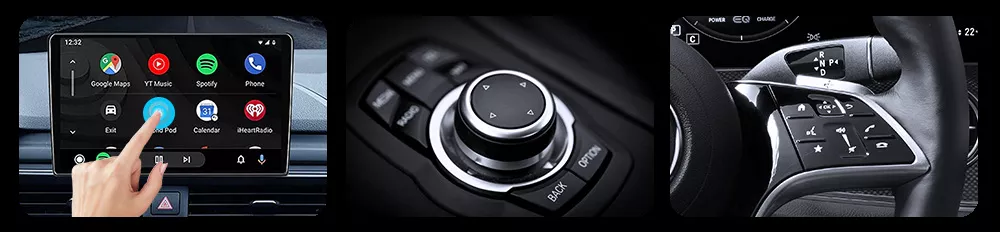

In addition to true mirroring your phone's content without limitations via USB connection, CA450 also allows wireless phone connection to OEM Apple CarPlay / AndroidAuto. Control of supported applications remains via the touchscreen, steering wheel buttons, or other means. Plug & Play module connection - to the car's USB slot designed for the phone. The phone connects to the car unit via the module automatically (after initial BT pairing).

Phone Mirroring:

• extremely fast: 0.08 seconds delay
• both-sides control - via the display in the car, also via the mobile phone display
• mirroring continues even if the phone display is in sleep mode
• safety first - the car unit only mirrors the phone

  • therefore all messages, accesses, history, data remain on your phone
• power supply - after connecting the USB-C charging cable (optional) to the module, the phone will be charged with a power of up to 27 Watt

Mirroring brings features focused on security and performance. All your messages, logins, history and data remain stored exclusively on your phone, so you can be sure of maximum protection of personal data. With a display delay of only 0.08 seconds, which is imperceptible to the human eye, the experience is fast and smooth. Highly adaptive technology ensures that the system automatically adapts to the full-screen image orientation of most applications and display functions, so you can get the full potential of your phone.

Features:

• True phone display mirroring without limitations via USB connection
• converts wired OEM CarPlay / Android auto to wireless
• retains original control method

.

Parameters:

• Processor: Single-core All winner V815S3
• RAM+ROM: 128MB + 16MB
• Wi-Fi: Dual-band 802.11 a/b/g/n 2.4 GHz + 5 GHz
• Bluetooth BT 4.0
• Power supply: USB 5V
• Connectors:

  • USB A male - to the car USB
  • USB C male - to the phone
  • USB C female - to supply power from the cigarette slot
• Dimensions: 13 x 34 x 94 mm
• micro button

  • long press for 10 seconds to erase all data and restore factory settings
• LED indicator

Included:

• module
• reduction USB-A / USB-C  (female / male)
• user manual

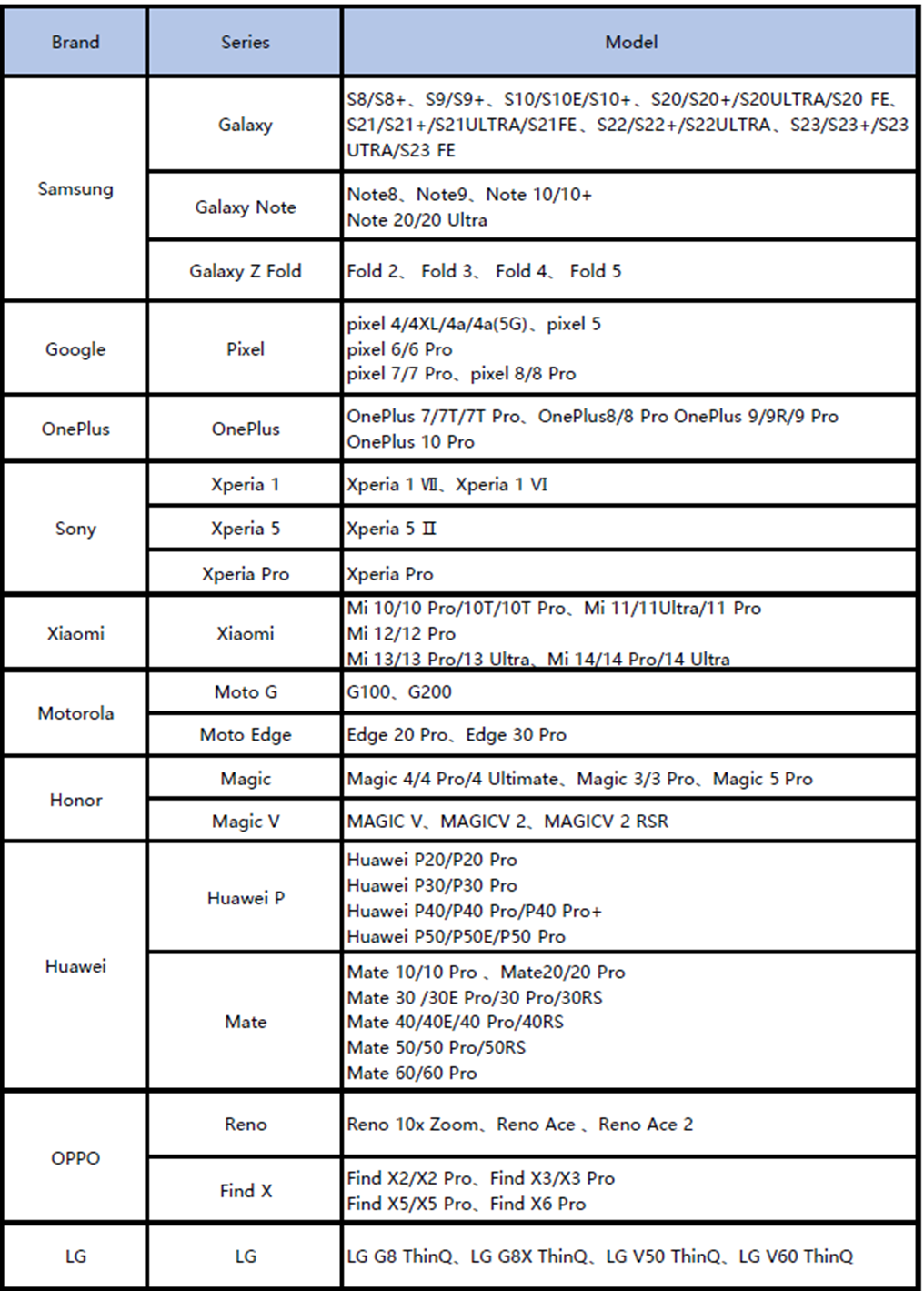

Smartphone compatibility for screen mirroring

The CA450 supports Android phones with DP (DisplayPort) technology, as well as iPhone 15 and 16 series. This allows you to mirror your phone's screen to your car's display. Please check your device to see if screen mirroring via DP is supported. Some phones require you to enable the "DeX" feature manually in the top scroll bar.

Scan the QR code to find out
