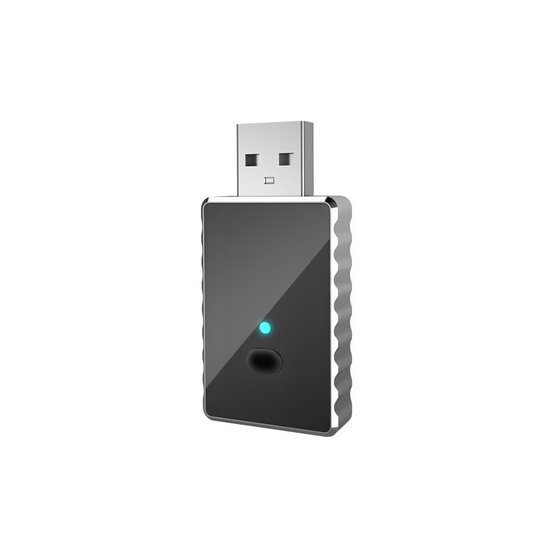

CA505 Mini Module, wireless Carplay AndroidAuto connection

| CA505

Universal miniature adapter for wireless OEM CarPlay / AndroidAuto connection. Designed for vehicles with wired CarPlay/Android Auto unit. Control of supported applications remains via the touch screen, steering wheel buttons, or in another way. Plug & Play module connection - to the vehicle's USB slot intended for the phone. The phone connects to the vehicle unit via the module wirelessly automatically (after initial BT pairing).

Show price
CA505 Mini Module, wireless Carplay AndroidAuto connection

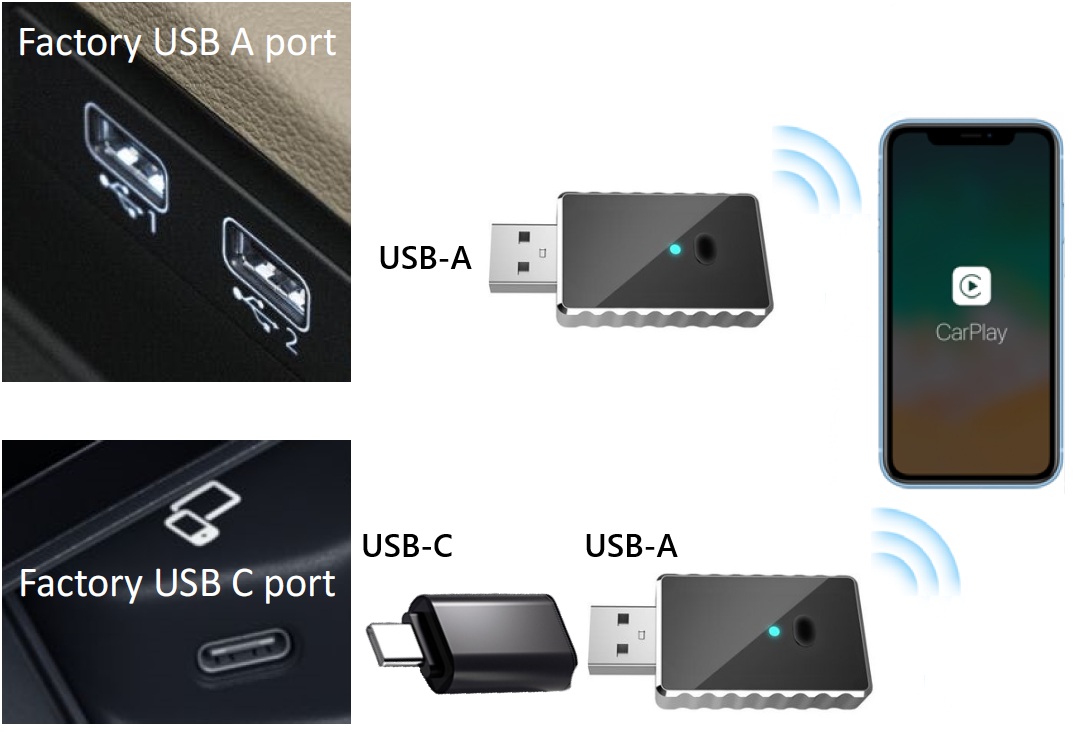

With the miniature CA505 module, there is no longer any need to connect your phone to the car's USB port. The connection with the Apple CarPlay/Android Auto unit of the car will take place automatically via WiFi, every time the ignition is turned on. The module remains permanently connected to the car's USB port instead of the phone and you can enjoy the freedom without a cable.

Features:

  • converts OEM CarPlay / Android auto via cable to wireless
  • retains original control method
  • smart button for disconnection and reset

.

Parameters:

  • Operating System: Linux
  • Processor: Single-core ARM Cortex A7 900MHz
  • RAM+ROM 64MB+16MB
  • Wi-Fi: Dual-band 802.11 a/b/g/n 2.4GHz + 5GHz
  • Bluetooth BT 5.4
  • Power: USB 5V
  • Operating temperature: -20 to 70℃
  • Connectors: USB adapter (type A to C)
  • Dimensions: 8 x 24 x 50mm (without USB-C adapter)
  • Smart button
  • Click to disconnect the current connection
  • Long press for 15 seconds to erase all data and restore factory settings.
  • LED Indicator
    • Red light: Power on
    • Blue light flashing: Automatic communication successful
    • Blue light flashing: Mobile phone successfully connected
    • Red and blue light flashing: Firmware update...
    • White light flashing: Firmware update completed
    • Red light flashing: Unexpected firmware update
    • White light flashing: Reset completed

Included:

  • module
  • USB-A / USB-C adapter (female / male)
  • user manual

Parameters

Weight 0.036 kg
