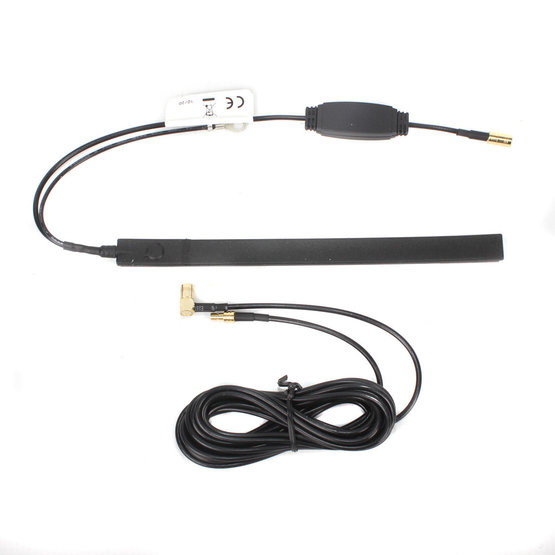

CAL-7137134 Calearo DAB glass antenna active 3.5 m

CALEARO | CAL-7137134

DAB glass antenna active 3.5m.


Connector: SMB F 90°
Extension cable: (L = 3,5 mt Z = 50 Ω C = 101 pF/m)
Consumption: 35 mA max
Power Supply: 12V Phantom
Frequency: III Band = 174 ÷ 240 MHz
VSWR: ROS 1.8 typical
Gain: Guadagno III Band = 6 dBi
Polarization: Vertical
Mounting: Internal adhesive on-glass
Temperature: - 10° C až + 70° C
Weight: 100 gr

Parameters

Use Universal
Location other
Connector SMB
Signal DAB
Manufacturer CALEARO
Weight 0.116 kg
