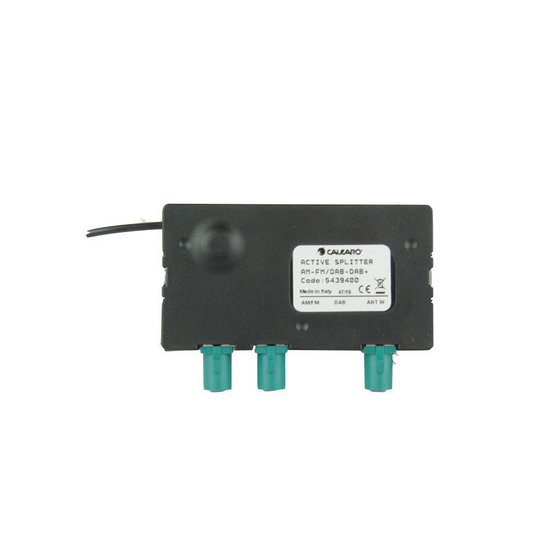

CAL-7561004 Calearo amplifier AM FM DAB active

CALEARO | CAL-7561004

Active Amplifier of AM/FM/ DAB+ for Passive DAB Antennas

Show price
CAL-7561004 Calearo amplifier AM FM DAB active

Active Amplifier of AM/FM/ DAB+ for Passive DAB Antennas

Radio splitter for receiving AM-FM analog radio signal and DAB-DAB + digital radio signal for passive auto-antennas. For passive auto-antennas with an antenna rod designed for receiving DAB transmissions.

Parameters:

  • FAKRA male universal connectors for signal connection
  • frequency bands:
  •     AM: 52-1.71 MHz
  •     FM: 87-108 MHz
  •     DAB: III band 174-240 Mhz
  •     DAB L band 1452 - 1492 MHz
  • Gain:
  •     AM: 25 dB
  •     FM: 13.5 dB
  •     DAB: III band: 21dB
  •     DAB L band 14dB
  • supply voltage: 12 V (separate conductor)
  • current consumption: 110mA max.
  • Impedance: 50Ohm
  • VSWR: <2: 1
  • dimensions: 62 x 35 x 27mm (L x W x H)
  • weight: 100g
  • installation: self-adhesive, inside the car
  • working temperature: -40 - + 95 °C
  • IP50

Parameters

Use Universal
Location other
Signal AM/FM, DAB
Manufacturer CALEARO
Connector FAKRA
Weight 0.047 kg
