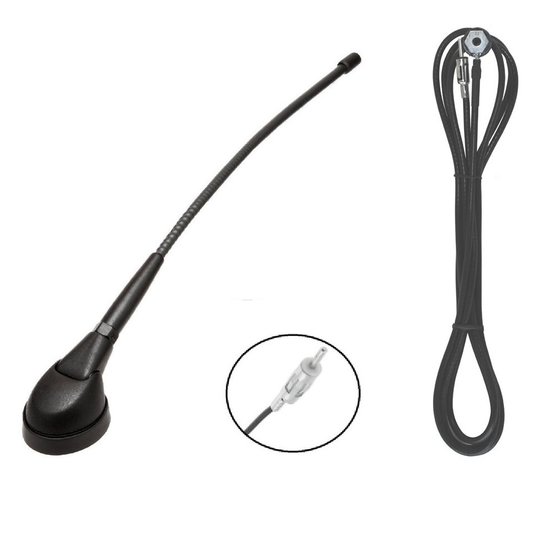

CAL-7667011 Calearo Antenna AM-FM DAB flexi
Calearo AM-FM / DAB / DAB+ universal flexible antenna.
Discontinued
Calearo AM-FM / DAB / DAB+ universal flexible antenna.
- passive antenna (without amplifier)
- omnidirectional antenna with vertical polarization
- frequency range:
- AM 0.52-1.71 MHz
- FM 87-108 MHz
- DAB 170-240MHz
- tilt angle: 0-90°
- flexible rod
- rod length: 23cm
- cable length: 150cm (RG58)
- car radio connector: DIN male
- diameter of the hole in the roof: 8mm
- base size: 4.2 x 3.7 cm
- VSWR: FM: <2: 1 @ 98MHz / DAB: <2.5> 1 @ 208MHz
- impedance: 50 Ohms
- working temperature: -40- + 85 °C
- black colour
Suitable for cars:
Universal use in front of the roof or pillar
Suitable for tractors, agricultural or working machines where there is an increased risk of damage
When used with equipment containing AM-FM and DAB tuner, an AM-FM / DAB signal splitter must be used.
Function:
- Ready for DAB broadcasting
- Antenna for receiving AM / FM broadcasts
- Antenna tilt angle 0-90°
- Antenna lead length 1.5m
- Antenna rod length 23cm
Parameters
| Use | Universal |
|---|---|
| Location | front, other |
| Signal | AM/FM, DAB |
| Manufacturer | CALEARO |
| Connector | DIN |
| Weight | 0.188 kg |
