CAL-7677840 Calearo Antenna 16V AM FM DAB GNSS active

CALEARO | CAL-7677840

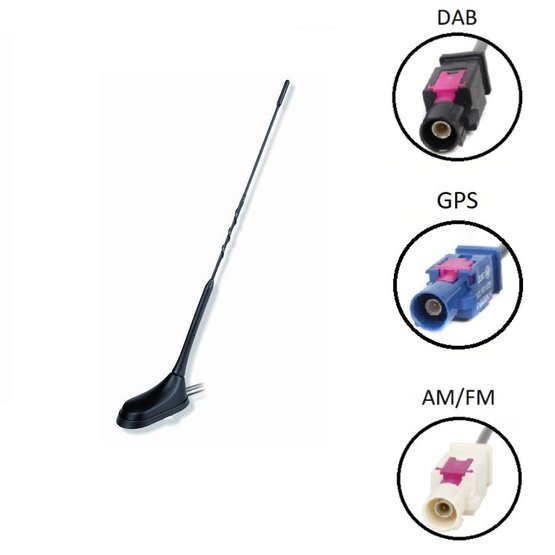

Antenna 16V AM FM DAB GNSS active.

	DAB	AM / FM	GNSS
Connector	FAKRA Male Black	FAKRA Male White	FAKRA Male Blue
Cable Type	RG 174	RG 174	RG 174
Cable Lenght	200 mm	180 mm	220 mm
Power Supply	12 Volt Dedicated	12 Volt Dedicated	3 - 5 Volt Phantom
Consumption	75 mA max	75 mA max	45 mA max
Impedance	50 Ω	50 Ω	50 Ω
Gain	12 dBi	--	32 dBi
VSWR	< 5:1	AM: < 5:1 / FM: < 8:1	2:1
Rod Lenght	410 mm
Rod Thread	M6
Rod Type	Antinoise
Protection Class	IP67
Coachwork drilling	Štvorec: 15 x 15 mm - kruh: 19 mm
Base Angle	60 stupňov

Suitable for cars:
Universal use

ALFA ROMEO 145 / ALFA ROMEO GT
AUDI A3 / AUDI A6 Avant (->01) / AUDI A4 Avant (->01)
BMW Mini (01->)
CITROEN Xsara / CITROEN C2 / CITROEN C3 / CITROEN C5 Break
DAEWOO Nubira Combi / DAEWOO Tacuma
FIAT Stilo / FIAT Idea / FIAT Panda II. (03-12)
LANCIA Libra Combi / LANCIA Y (04->)
LOTUS Elise / LOTUS Esprite
MAZDA 323 (99->)
MAZDA 3
MAZDA 6 I. [GG][GY](2002-1/2008)
MITSUBISHI Outlander
NISSAN Micra / NISSAN Almera / NISSAN Primera
OPEL Omega Caravan / OPEL Zafira / OPEL Vectra / OPEL Meriva / OPEL Speedster / OPEL Agila
OPEL Astra(98->) / OPEL Vectra Vagon / OPEL Corsa (03->) / OPEL Signum
PEUGEOT 307
RENAULT Clio (01->) / RENAULT Megane II / RENAULT Scenic II
SEAT Aroza / SEAT Ibiza (98->) / SEAT Cordoba (98->) / SEAT Toledo (98->) / SEAT Leon / SEAT Altea
ŠKODA Felicia / ŠKODA Fabia I. / ŠKODA Fabia II. / ŠKODA Octavia I.
ŠKODA Octavia II. / ŠKODA Superb I. / ŠKODA Superb II.
TOYOTA RAV4 / Corolla (02->) / Yaris (03->) / Prius
VW Lupo / VW Polo / VW Golf III. / VW Corrado / VW Golf IV. / VW Beetle / VW Bora / VW Passat (93->) / VW Passat (97->)
VOLVO V40

* - it may be necessary to use a cable reducer in some cars to connect to an OEM (original) antenna duct.

Parameters

Brand of the car	VW, Volvo, Mitsubishi, Citroen, Renault, Lancia, Lotus, Daewoo, Seat, Fiat, Mazda, Škoda, Alfa Romeo, Audi, Nissan, Opel, Peugeot, Bmw, Toyota
Model of the car	Cordoba, Toledo, A3, Leon, A4, Altea, Mini, Felicia, Xsara, Fabia I., C2, Fabia II., C3, Octavia I., C5, Octavia III., Nubira, Superb I., Tacuma, Superb II., Stilo, RAV4, Idea, Corolla, Outlander, Corrado, Beetle I., Scenic II., Megane II., Clio, V40, 307, Libra, 6 I., 3, 323, Arosa, Prius, Yaris, Golf IV, Golf III., Passat, Polo, Lupo, Bora, Panda II., Micra, Primera, Almera, Corsa, Meriva, Vectra, Speedster, Astra, Zafira, Agila, Signum, Ibiza
Use	Universal, OEM
Location	rear
Manufacturer	CALEARO
Connector	FAKRA, w/o lead
Signal	GPS, DAB, AM/FM
Weight	0.296 kg
