CAL-7677855 Calearo Short antenna AM FM DAB active

CALEARO | CAL-7677855

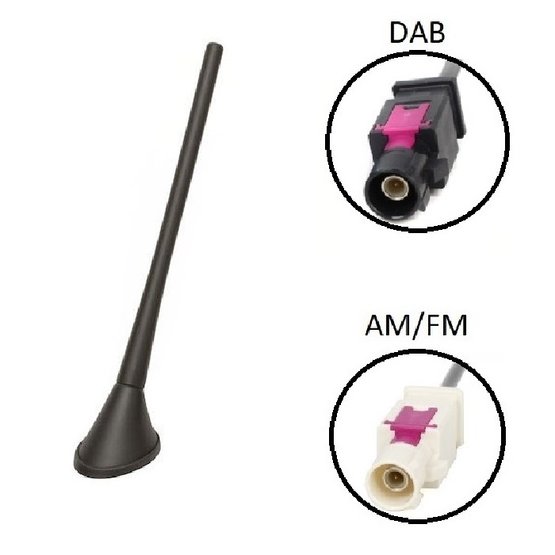

Short antenna AM FM DAB active.

	DAB	AM / FM
Connector	FAKRA Male Black	FAKRA Male White
Cable Type	RG 174	RG 174
Cable Lenght	200 mm	180 mm
Power Supply	12 Volt Dedicated	12 Volt Dedicated
Consumption	50 mA max	50 mA max
Impedance	50 Ω	50 Ω
Gain	0 dBi	--
VSWR	< 3:1	AM: 5:1 / FM: 7,5:1
Rod Lenght	200 mm
Rod Thread	M5
Rod Type	Smooth
Protection Class	IP68
Coachwork drilling	Square: 15 x 15 mm - Round: 19 mm
Base Angle	60 degree

Suitable for cars:

Universal use
ALFA ROMEO 145 / ALFA ROMEO GT
AUDI A3 / AUDI A6 Avant (->01) / AUDI A4 Avant (->01)
CITROEN Xsara / CITROEN C2 / CITROEN C3 / CITROEN C5 Break
DAEWOO Nubira Combi / DAEWOO Tacuma
FIAT Stilo / FIAT Idea / FIAT Panda II. (03-12)
LANCIA Libra Combi / LANCIA Ypsilon (04->)
LOTUS Elise / LOTUS Esprite
MAZDA 323 (99->) / MAZDA 3
MAZDA 6 I. [GG][GY](2002-1/2008)
MITSUBISHi Outlander
NISSAN Micra / NISSAN Almera / NISSAN Primera
OPEL Omega Caravan / OPEL Zafira / OPEL Vectra / OPEL Meriva / OPEL Speedster
PEUGEOT 307
RENAULT Clio (01->) / RENAULT Megane II / RENAULT Scenic II
SEAT Aroza / SEAT Ibiza (98->) / SEAT Cordoba (98->) / SEAT Toledo (98->) / SEAT Leon / SEAT Altea
ŠKODA Fabia I. / ŠKODA Fabia II. / ŠKODA Octavia I. / ŠKODA Octavia II. / ŠKODA Superb I. / ŠKODA Superb II. / ŠKODA Yeti
TOYOTA RAV4 / TOYOTA Corolla (02->) / TOYOTA Yaris (03->) / TOYOTA Prius
VW Lupo / VW Polo / VW Golf III IV / VW Corrado / VW New Beetle / VW Bora / VW Passat (93->)(97->)
VOLVO V40

For use in other types of cars, use an antenna adapter or an antenna duct.

Parameters

Brand of the car	Toyota, VW, Volvo, Mitsubishi, Citroen, Renault, Lancia, Lotus, Daewoo, Seat, Fiat, Mazda, Škoda, Alfa Romeo, Audi, Nissan, Opel, Peugeot, Bmw
Model of the car	Ibiza, Cordoba, Toledo, A3, Leon, A4, Altea, Mini, Felicia, Xsara, Fabia I., C2, Fabia II., C3, Octavia I., C5, Octavia III., Nubira, Superb I., Tacuma, Superb II., Stilo, RAV4, Idea, Outlander, Beetle I., Corrado, Scenic II., Clio, Megane II., V40, 307, Libra, 6 I., 3, 323, Yaris, Corolla, Prius, Passat, Polo, Lupo, Bora, Golf IV, Golf III., Panda II., Micra, Almera, Primera, Vectra, Corsa, Meriva, Astra, Zafira, Speedster, Signum, Agila, Arosa
Use	Universal, OEM
Connector	FAKRA, w/o lead
Manufacturer	CALEARO
Signal	DAB, AM/FM
Location	rear
Weight	0.178 kg
