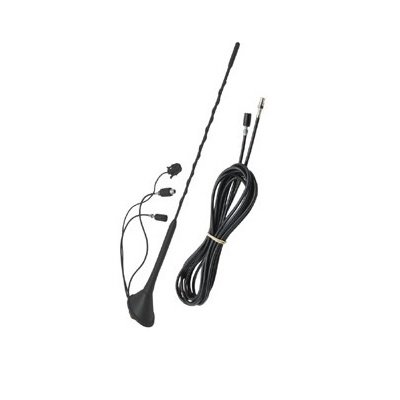

CAL-7687050 Calearo antenna AM FM GSM rear

Roof antenna, AM/FM/GSM rear, with amplifier, 76°

Parameters

• tilt angle: 76°
• removable rod 40cm
• base dimensions: 6x4,3cm
• installation in a round (Ø19mm) or square hole (15x15mm)

GSM

• frequency range GSM 880-960 / 1710-1880MHz
• gain: 0dBi
• max. power: 8W
• VSWR: TX <1.5: 1 / RX <2: 1
• antenna lead length: 5m
• connector for GSM devices: FME female
• antenna connector: ROKA male (cable 14cm)

AM / FM

• frequency range FM 76-108MH, AM 0.52-1.71MHz
• without antenna lead
• antenna connector: RAKU2 female (cable 14cm)
• 12V amplifier power supply

For cars:

• universal
• ŠKODA Felicia
• OPEL Agila / OPEL Astra (98->) / OPEL Vectra Vagon / OPEL Corsa (03->) / OPEL Signum
• BMW Mini (01->)

Note. it can also be used in other vehicles by adding a suitable adapter
