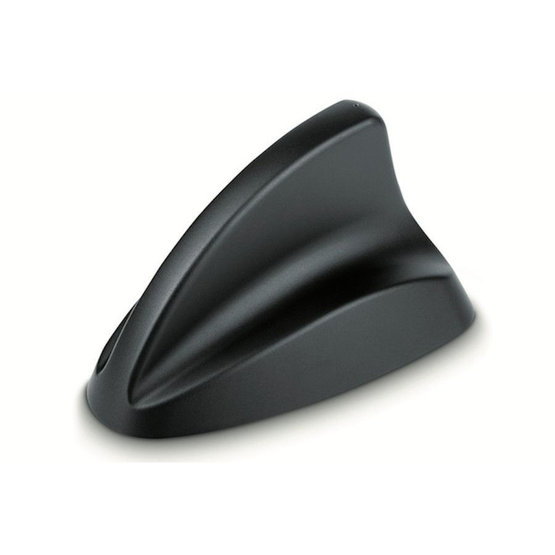

CAL-7727065 Calearo antenna Shark2 AM FM GPS WIFI

Roof antenna, AM/FM/GPS/WIFI, Shark2

Parameters

• dimensions: 11.7 x 7.6 x 6.2cm (LxWxH)
• body hole diameter: round 19mm / square 15x15mm

WiFi

• WiFi frequency range: 2400-2485MHz
• gain: 0dB
• current consumption: max.30mA
• VSWR: <2.5: 1
• without antenna lead
• antenna connector: SMA male (cable 10cm)

GPS

• GPS frequency range: 1575.42 (+/- 1.023) MHz
• phantom power supply: 3-5V
• gain:> 27dB
• current consumption: max.30mA
• VSWR: <2: 1
• antenna lead length: 5m
• GPS device connector: FAKRA female
• antenna connector: RAST (cable 20cm)

AM / FM

• frequency range AM / FM: 0.52 - 1.71 / 88-108MH
• phantom power supply: 12V
• without antenna lead
• antenna connector: RAKU2 female (cable 14cm)

For cars

• on the roof for cars or trucks
• replacement for the original antenna
• if another connector is required on the device side, a reduction can be used
