CAL-7727082 Calearo Antenna Shark2 AM FM DTT active

CALEARO | CAL-7727082

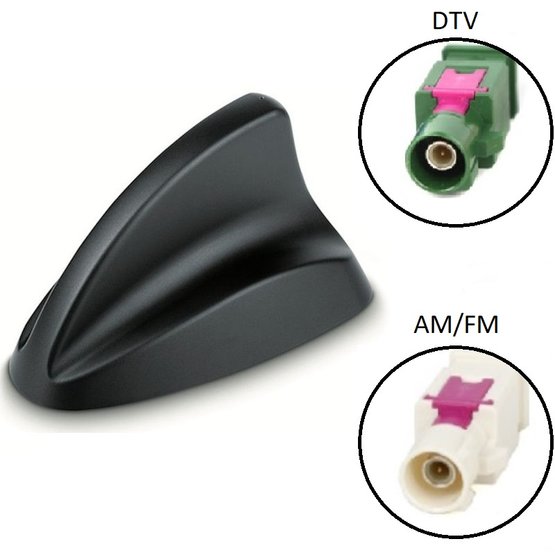

Antenna Shark2 AM FM DTT active.

Parameters:

	AM/FM	DTT
Connector	FAKRA Male White	FAKRA Male Green
Cable Type	RG 174	RG 174
Cable Lenght	250 mm	250 mm
Power Supply	12 Volt Dedicated and Phantom	12 Volt Dedicated and Phantom
Consumption	50 mA max	40 mA max
Impedance	FM: 50 Ω	50 Ω
Gain	-	4 dBi
VSWR	-	< 4
Protection Class	IP68
Coachwork drilling	Square: 15 x 15 mm - Round: 19 mm

Suitable for vehicles:

Universal use
ALFA ROMEO 145 / ALFA ROMEO GT
AUDI A3 / AUDI A6 Avant (->01) / AUDI A4 Avant (->01)
BMW Mini (01->)
CITROEN Xsara / CITROEN C2 / CITROEN C3 / CITROEN C5 Break
DAEWOO Nubira Combi / DAEWOO Tacuma
FIAT Stilo / FIAT Idea / FIAT Panda II. (03-12)
LANCIA Libra Combi / LANCIA Y (04->)
LOTUS Elise / LOTUS Esprite
MAZDA 323 (99->)
MAZDA 3
MAZDA 6 I. [GG][GY](2002-1/2008)
MITSUBISHI Outlander
NISSAN Micra / NISSAN Almera / NISSAN Primera
OPEL Omega Caravan / OPEL Zafira / OPEL Vectra / OPEL Meriva / OPEL Speedster / OPEL Agila
OPEL Astra(98->) / OPEL Vectra Vagon / OPEL Corsa (03->) / OPEL Signum
PEUGEOT 307
RENAULT Clio (01->) / RENAULT Megane II / RENAULT Scenic II
SEAT Aroza / SEAT Ibiza (98->) / SEAT Cordoba (98->) / SEAT Toledo (98->) / SEAT Leon / SEAT Altea
ŠKODA Felicia / ŠKODA Fabia I. / ŠKODA Fabia II. / ŠKODA Octavia I.
ŠKODA Octavia II. / ŠKODA Superb I. / ŠKODA Superb II.
TOYOTA RAV4 / Corolla (02->) / Yaris (03->) / Prius
VW Lupo / VW Polo / VW Golf III. / VW Corrado / VW Golf IV. / VW Beetle / VW Bora / VW Passat (93->) / VW Passat (97->)
VOLVO V40

Parameters

Brand of the car	Toyota, VW, Volvo, Mitsubishi, Citroen, Renault, Lancia, Lotus, Daewoo, Seat, Fiat, Mazda, Škoda, Alfa Romeo, Audi, Nissan, Opel, Peugeot, Bmw
Model of the car	Ibiza, Cordoba, Toledo, A3, Leon, A4, Altea, Mini, Felicia, Xsara, Fabia I., C2, Fabia II., C3, Octavia I., C5, Octavia III., Nubira, Superb I., Tacuma, Superb II., Stilo, RAV4, Idea, Outlander, Beetle I., Corrado, Scenic II., Clio, Megane II., V40, 307, Libra, 6 I., 3, 323, Corolla, Yaris, Prius, Passat, Polo, Lupo, Bora, Golf IV, Golf III., Panda II., Primera, Micra, Almera, Corsa, Meriva, Vectra, Astra, Zafira, Speedster, Signum, Agila, Arosa
Use	Universal, OEM
Connector	FAKRA, w/o lead
Manufacturer	CALEARO
Signal	TV, AM/FM
Location	rear
Weight	0.244 kg
