CAL-7771001 Calearo Antenna UHF GNSS 5.0m cable

CALEARO | CAL-7771001

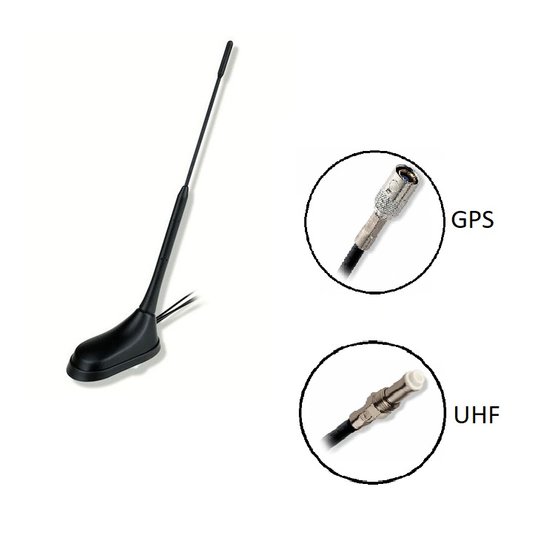

Combined universal roof antenna 60° for radios operating in the UHF band and GPS navigation


Combined universal roof antenna 60° for radios operating in the UHF band and GPS navigation

Together
- black colour
- inclination: 60°
- rod length: 26.5 cm
- temperature range of use: -40 to 85 °C
- protection class: IP68
- base dimensions: 9.8 x 5cm (L x W)
- diameter of the hole in the body: round 19mm / square 15x15mm

UHF
- UHF frequency range 430-470MHz
- profit: 3dBi
- max. power: 20W
- VSWR: TX <2: 1 / BW 2MHz
- antenna lead length: 5m (RG58)
- radio connector: FME female
- antenna connector: FAKRA male (cable 14cm)

GPS
- GPS frequency range: 1575.42 (+/- 1.023) MHz
- phantom power supply: 3-5V
- gain:> 27dBi
- current consumption: max.35mA
- VSWR: <2: 1
- length of antenna lead: 5m
- connector on GPS device: SMB female
- connector at the antenna: RAST (cable 20cm)

Use in cars: on the roof for cars or trucks, can be used as a replacement for the original antenna. If a different type of connector is required on the side of the connected device, it is possible

Use

Antenna for GPS devices
Antenna for UHF radio stations

Parameters

Use Universal
Location rear
Connector SMB, FME
Signal UHF, GPS
Manufacturer CALEARO
Weight 0.45 kg
