CAM4 Camera analog, rod mounting 4PIN auto IR

| CAM4

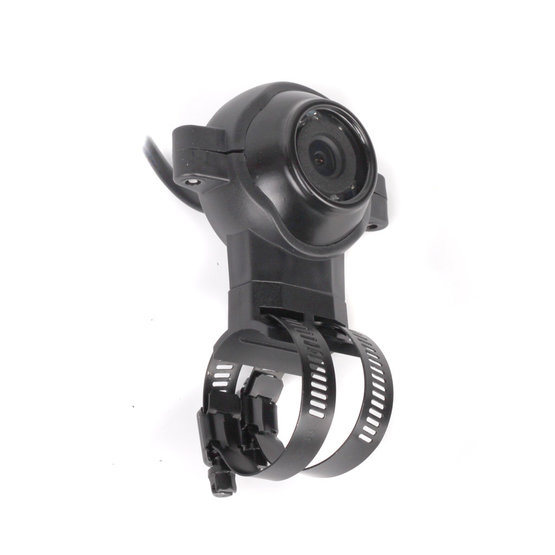

Universal camera designed for on round rod installation, or on a flat surface installation, with automatic IR LEDs.


Universal camera designed for on round rod installation, or on a flat surface installation, with automatic IR LEDs.

  • 1/3" CCD image sensor
  • effective pixels         510 x 492
  • resolution                700 TVL (analog)
  • view angle               140° (diagonal)
  • min. lighting             0 lux (when IR LEDs are on)
  • TV standard              NTSC
  • image orientation      mirror image
  • connection                4PIN M12 connector (signal and power supply)
  • power supply            12 V (from monitor)
  • work. temperature range  from -20 °C to +70 °C
  • waterproof                IP69K
  • shock resistance        10G
  • head diameter / depth 52 mm / 45 mm
  • cable ties range diameter 21 to 38 mm
  • e-mark                      E9

Parameters

Use UNI
For cars commercial
Signal analog
Plugs M12
Weight 0.21 kg
