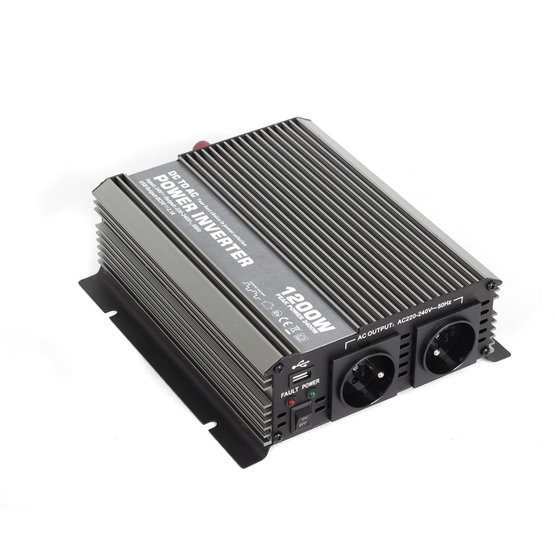

CAR1200-24V Voltage inverter from 24V to 230V + USB, 1200W

| CAR1200-24V

Power Inverter 1200W suitable for vehicles with 24V on-board network (trucks), for appliances 230V powered, such as microwaves, kettles, boilers, pumps, light bulbs, hand tools, refrigerators. The output current has the form of a modified sinusoid (rectangular waveform) with a frequency of 50Hz/230V, it is equipped with a USB output for charging USB devices (MP3 players,...).


Power Inverter 1200W suitable for vehicles with 24V on-board network (trucks), for appliances 230V powered, such as microwaves, kettles, boilers, pumps, light bulbs, hand tools, refrigerators. The output current has the form of a modified sinusoid (rectangular waveform) with a frequency of 50Hz/230V, it is equipped with a USB output for charging USB devices (MP3 players,...).

Features:

  • maximum peak power of 2400W
  • nominal power 1200W
  • quiescent power: 400mA
  • input voltage 24V
  • dimensions 275*208*77 mm
  • USB output 5V (max. 500 mA)
  • output frequency 50 ±3 Hz
  • protection against overload, overheating, overvoltage at the input, undervoltage at the input
  • protection against polarity reversal


ATTENTION: Do not connect the output of the inverter together with other sources of alternating current! (with another 230V mains socket, neither in parallel, nor in series, nor with the mains socket of the public distribution network/other converters).

Examples of using an inverter with suitable performance (make sure the inverter is not undersized).

Parameters

Product type Power inverters
Input / Output 24V / 230V
Weight 2.603 kg
