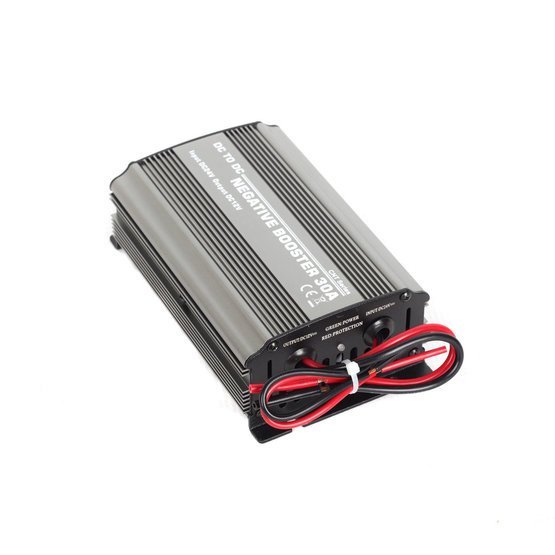

CAR2412-30 Switched voltage inverter from 24V to 12V, 30A
DC voltage converter 24V to 12V, with a maximum load of 30A / 360W.
Discontinued
DC voltage converter 24V to 12V, with a maximum load of 30A / 360W.
Parameters:
- input DC voltage: DC 13 to 40V
- output DC voltage: DC 12V ±5%
- maximum output current: 32A
- maximum operating temperature: 80°C
- rated output current: 30A
- rated output power: 360W
- operating current: <40mA
- dimensions: 187 x 91 x 47 mm
- dual LED indicator
- protection against overvoltage, overheating, short circuit
Parameters
| Input / Output | 24V / 12V |
|---|---|
| Weight | 0.51 kg |
