Discontinued

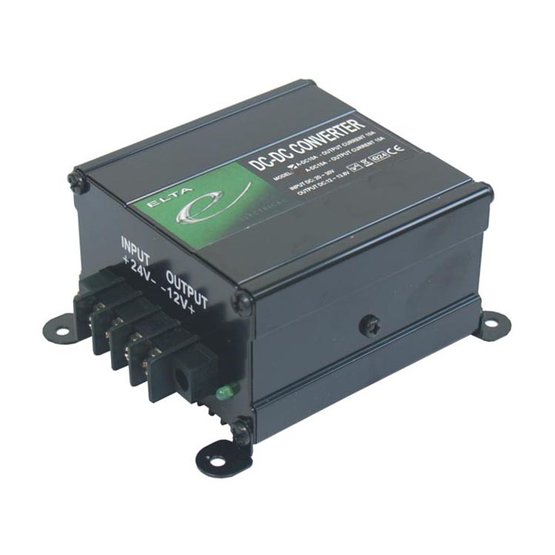

DC to DC converter 24V/12V DC10A

ELTA | DC10A

DC to DC converter - input DC24V output DC12V, 10A. Automatic protection features: over load, over heating, output and input polarity reverse, output short. Static operating current: <40mA. Without harness.

Discontinued

DC/DC Converter 24V to 12V/10A

SPECIFICATION

INPUT VOLTAGE RANGE: 20-30V DC
OUTPUT VOLTAGE RANGE: 12V-13.8V DC
STANDBY INPUT CURRENT: < 10mA
CONTINUE OUTPUT POWER: 10A
MAX.OUTPUT POWER:15A
EFFICIENCY: 90%
COOLING: AUTO-OPERATION FAN
INPUT POLARITY REVERSE: DIODE PROTECTION
OUTPUT POLARITY REVERSE:CIRCUIT PROTECTION
OVER HEATING: CIRCUIT PROTECTION
OVER LOAD: CIRCUIT PROTECTION
OUTPUT SHORT: CIRCUIT PROTECTION
FUSE:15A

Dimension (L*W*H)mm: 71*73*73
weight: 260g

Parameters

Weight	0.295 kg
