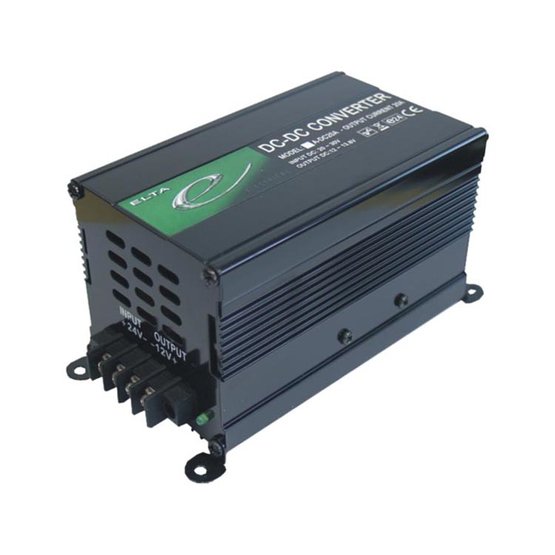

DC to DC converter 24V/12V DC20A

ELTA | DC20A

DC to DC converter - input DC24V output DC12V, 15A. Automatic protection features: over load, over heating, output and input polarity reverse, output short. Static operating current: <40mA. Without harness. Cooling fan.
DC to DC converter 24V/12V DC20A

Discontinued

DC/DC Converter 24V to 12V/20A

SPECIFICATION

  • INPUT VOLTAGE RANGE: 20-30V DC
  • UTPUT VOLTAGE RANGE: 12V-13.8V DC
  • STANDBY INPUT CURRENT: < 40mA
  • CONTINUE OUTPUT POWER: 20A
  • MAX.OUTPUT POWER:30A
  • EFFICIENCY: 90%
  • COOLING: AUTO- OPERATION FAN
  • INPUT POLARITY REVERSE: DIODE PROTECTION
  • OUTPUT POLARITY REVERSE:CIRCUIT PROTECTION
  • OVER HEATING: CIRCUIT PROTECTION
  • OVER LOAD: CIRCUIT PROTECTION
  • OUTPUT SHORT: CIRCUIT PROTECTION
  • FUSE:20A
  • Dimension (L*W*H)mm: 120*73*73
  • Weight: 600g

Parameters

Weight 0.562 kg
