Front parking sensors FBSN-4FD

Front parking system APRI with 4 sensors and buzzer. „Hook corrections“ function, MUTE function, sensitivity for each sensor. It contains control unit, harness, front sensors.

Set not includes drill - drill holes are depending by type of bracket - O18/22/24mm.

Function

• Automatic deactivation of the front sensors, if the speed exceeds approximately 10km/h (speed signal must be connected)
• MUTE function - car audio is automatically faded-out during indication of obstacles
• Time window - front sensor are active after the ignition switching ON
• Fault sensor is automatically detected
• Settable volume of the speaker

Technical parameters

• Supply voltage: 9-30V DC
• Current consumption: 350 mA max.
• Operational temperature: -25 / + 70°C
• Working frequency: 40kHz
• Detection range of front sensors: max. 95 cm (default on 80cm)

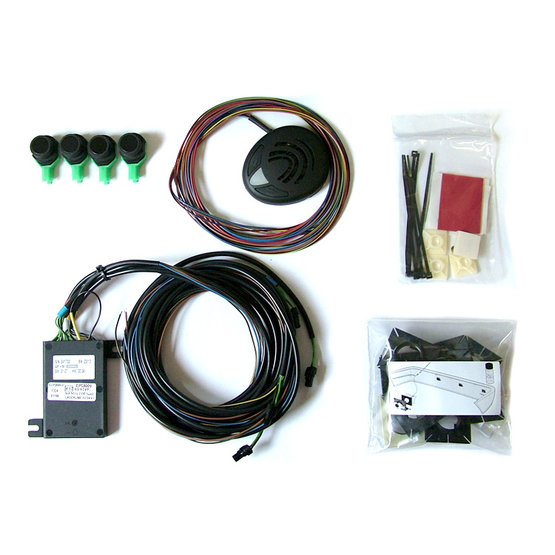

Package

• 4 front sensors (marked with green color)
• Main control unit with display and operating buttons
• Front cable harness
• Speaker
