Keetec BS 420 LED S parking assistant

| BS 420 LED S

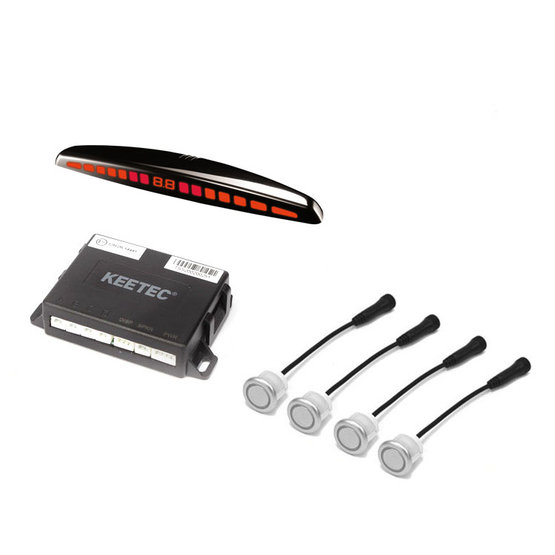

Parking assistant KEETEC with the option to install as Rear or Front, with 4 silver sensors and LED display. Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. The unit is designed for 12V/24V on board voltage cars.


Parking assistant KEETEC with the option to install as Rear or Front, with 4 silver sensors and LED display. Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. The unit is designed for 12V/24V on board voltage cars.

The length of the wires to the sensors is 2.3 m.

When installing the parking assist in the front bumper, it is necessary to use EXT CABLE KIT extension cables.


System Description:

  • sensors with fixed assembly to the bumper
  • fast obstacle detection
  • excellent coverage of the entire area behind or before the vehicle
  • when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • auto detection (automatic identification of the defective sensor)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • sensors core diameter 14 mm
  • mounting hole 18,8 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • adjustable sensitivity of the sensors on the control unit (2 levels)
  • the unique learning function (ignoring permanent obstacle - tow bar, spare wheel, frame, ...)
  • with additional ACC wire (pink wire) for stable power supply(optional connection)
  • control unit is not waterproof, must be installed in dry place

Technical parameters:

  • Operating voltage: 9 ~ 27V DC
  • Working current : < 250Ma
  • Speaker: 80 ± 10dB
  • Detection range rear: 0.3 ~ 2.59 m
  • Detection range front : 0,3 ~ 0,99 m

Operating temperature

  • ECU: -40°C ~ +80°C
  • Display: -20°C ~ +70°C
  • Sensor: -40°C ~ +80°C

Parameters

Product type Front sensors, Rear sensors
Manufacturer Keetec
Sensors colour silver
Power Suply 12/24VDC
Display LED display
Sensor type Basic
Weight 0.71 kg
