Keetec RF SMART 4P additional security module

RF SMART 4P is an additional module for car alarm TS CAN (ver.USB), which is used to identify an authorized unlocking of the vehicle and subsequent deactivation of immobilisation circuit of TS CAN (ver.USB). Remote Controller RC SMART+ has a range of up to 20 m and includes a motion sensor to ensure better battery life.

System description

After unlocking the vehicle (open the doors), the system will search for the remote control RC SMART+. If it does not load it within 10 seconds, siren beeps 10x to alert the driver that RC SMART+ was not loaded. If it does not load it within 20 seconds, alarm will be triggered and immobilization circuit will remain open.

Two operating modes

1. To deactivate the system, it is necessary to press the button on the remote control RC SMART+. After pressing, the system is deactivated, immobilization circuit is linked and the vehicle can be started.

2. Proximity remote mode. The system is deactivated automatically when the vehicle is unlocked, door is opened and the RC SMART+ is in range and system load it. After loading is complete, the system is deactivated, immobilization circuit is linked and the vehicle can be started.

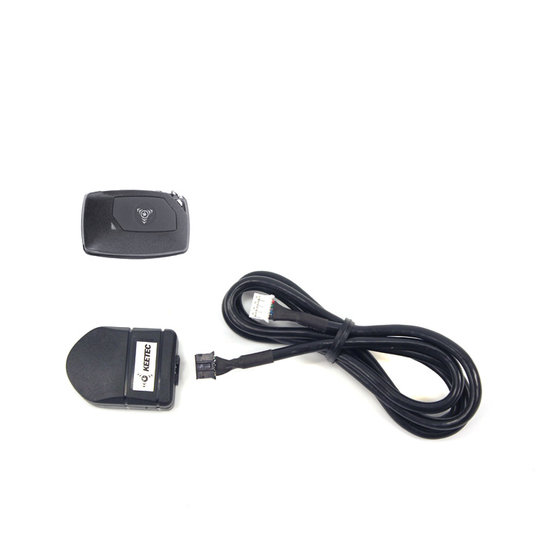

Packing

Antenna module, cable for connecting to TS CAN (ver.USB), remote control RF SMART+

Note: Black connector of the cabelling dedicated to antenna, white connector to TS CAN(ver.USB). The connectors not allowed to be connected other way!
