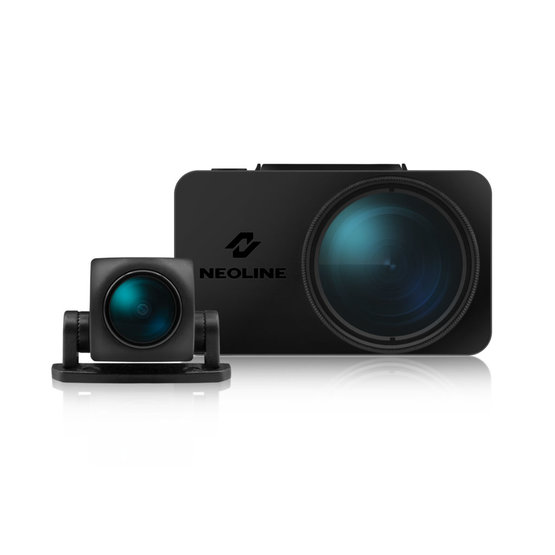

Neoline X76 Onboard camera, 2ch

Full HD dash camera NEOLINE 2-channel (2x 1080p 30fps, 720p 60fps), image sensor SONY Exmor, f 1.8, with 140° view angle, with IPS 2.0" screen, with WDR, supports up to 256GB SD card. Sophisticated parking mode allows you to set the parameters individually while parking, such as resolution, sensitivity, rec. trigger way. Night Mode feature records in monochrome mode for better image capture at reduced visibility. Power adapter also for permanent installation possible to use optionally. includes a manually adjustable CPL filter to remove glares in sunny weather, for vehicles with onboard voltage of 12/24V.

The device saves the recording from the front and rear cameras individually, in separate files. The rear camera is also used to record, but it cannot be used as a parking camera. The rear camera can also be installed in the exterior of the vehicle.

Note: The cabeling "Neoline KAB7" for permanent installation, required for parking mode to use, is currently not fully compatible with this camera (parking mode and camera switching should be done manually by the camera buttons). The new cabling for permanent installation will be available in January 2021. When using with the package cabeling, the camera works fully automatically (but except the parking mode).

Technical parameters:

• Image sensor: SONY Exmor CMOS, aperture f 1.8
• Novatek CPU
• Video Resolution: Front: Full HD 1920x1080 (30sn / sec), HD 720p (60fps)
• Rear: Full HD 1920x1080
• Video format: MP4
• WDR: Optimization of brightness at dark / light
• View angle: 140°
• Screen: Built-in, 2.0”
• CPL filter - polarizing filter against glares in sunny weather
• Speaker and Microphone: built-in
• magnetic holder - fast and firm grip
• G-sensor
• Parking mode (camera must be connected to permanent power)
• Night mode
• Cyclic Recording: 1, 2, 3, or 5 minutes of recorded files
• Automatically turn on recording
• Date and Time - option to display on record
• Vehicle registration number - the option to enter and display on the record
• Micro SD slot: 8GB to 256GB capacity support
• Capacitor built-in
• Language of menu: en, fra, ru, esp, ge, pl
• Storage temperature: from -20 °C to +70 °C
• Operating temperature: -10 °C to +60 °C
• Camera Power: DC 5V, 1.5A
• Adapter power supply: DC 12V/24V
• Front camera dimensions: 74 x 42 x 34.5mm (without holder)
• Rear camera dimensions: 22 x 22x 32 mm (without holder)
• Rear camera: IP67 - also for external use
• Front Camera weight: 87g
• cable length to rear camera: 10 m
• length of power cord for cigarette slot: 3.4 m

Package contents: main camera, rear camera, USB cable short, CL / USB adapter, magnetic holder, cable for rear camera, double-sided 3M tape.
