OEM Parking camera Audi, BC ADI-03

| BC ADI-03

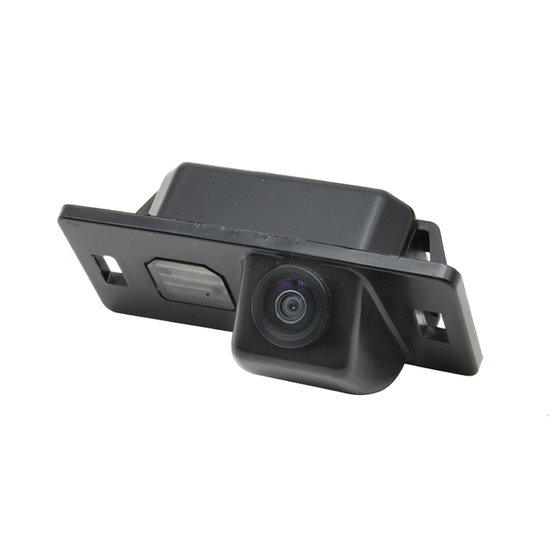

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.


Discontinued

OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.

Suitable for the car models:

  • AUDI A4 [B8] (2008->)
  • AUDI A5 (2007->)
  • AUDI Q5 (2007->)
  • AUDI TT (->2006)

Technical parameters:

  • CCD 1/4 " sensor chip
  • diameter of the object lens 19mm
  • it displays the guide links for easy orientation by parking
  • Electronic aperture: 1/50 1/10000 sec.
  • Minimum illumination: 0,1 Lux
  • Signal to noise ratio:> 48dB
  • TV system: NTSC
  • TV lines: 480
  • Waterproof: IP68
  • Lens angle: 170 °
  • Video output: 1.0V / 75 Ohm
  • White balance: automatic
  • Operating temperature -30 ° C to +70 ° C
  • Signal cable lenght 7meters ended with CINCH connectors
  • Power supply cabel lenght 1m
  • Power consuption: <1W
  • OEM colour parking camera to install into the rear licence plate light body. New LED light, as a replacement of the original light, is included.
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
